GMP Storm Fiber Gun

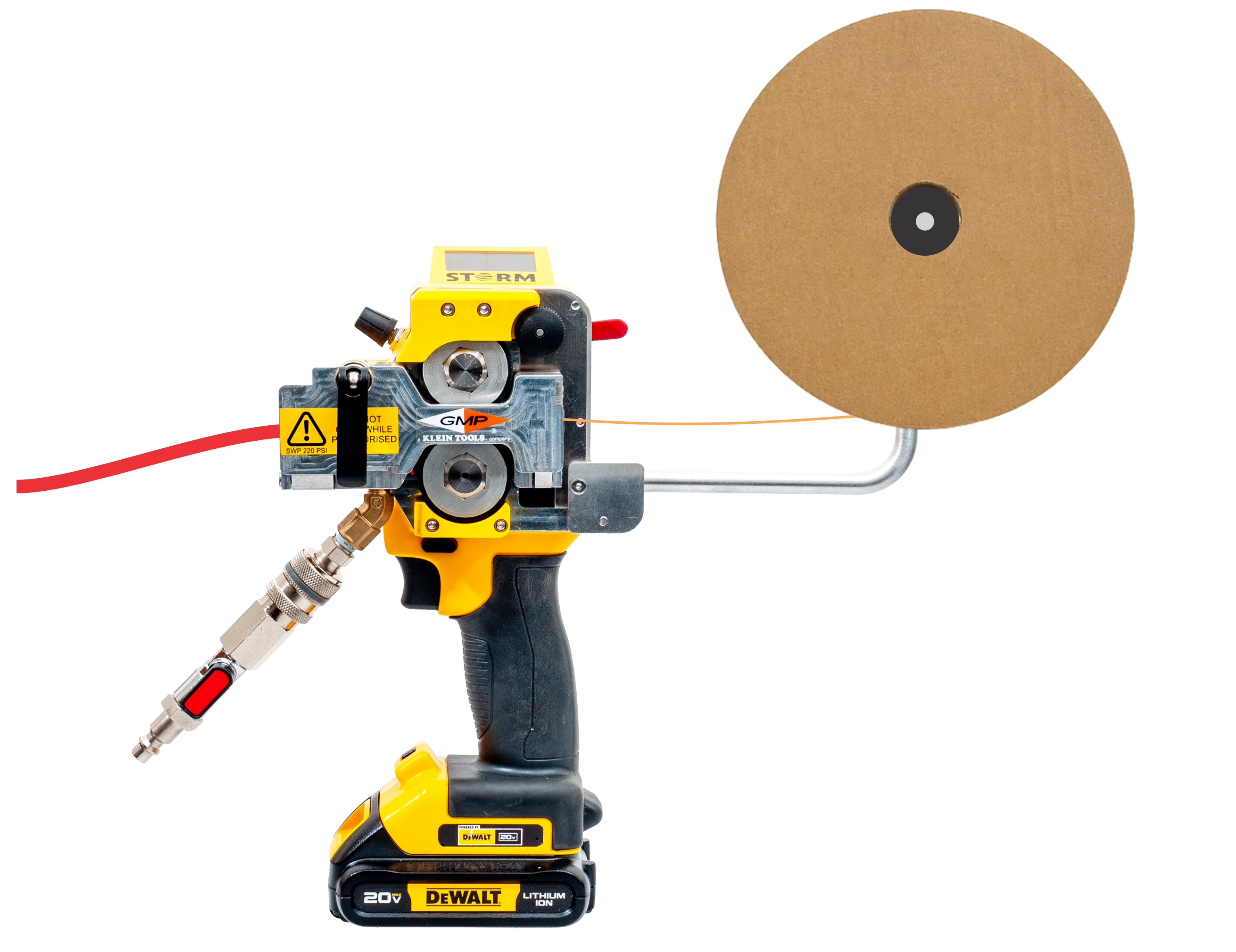

Storm with fiber reel

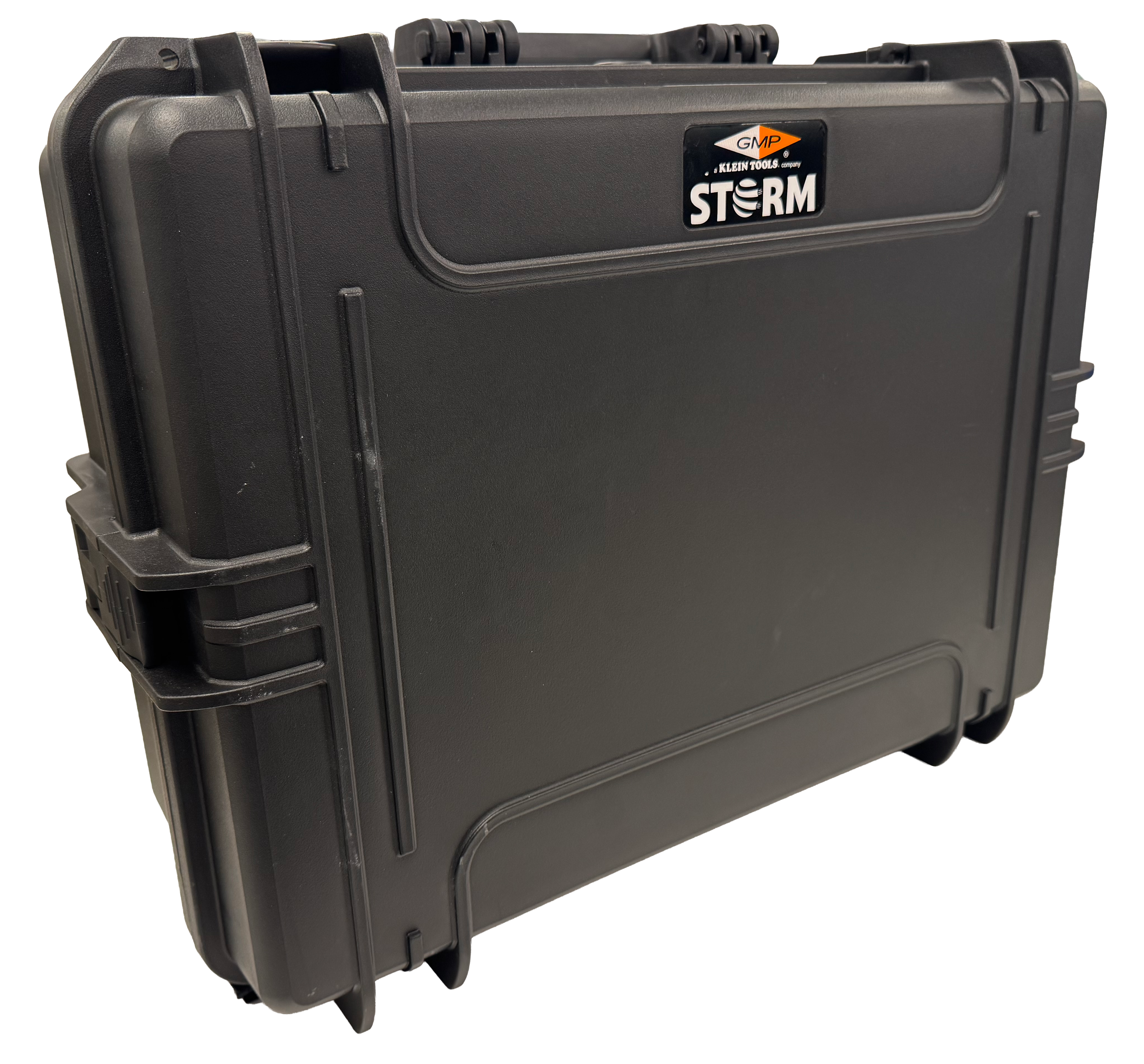

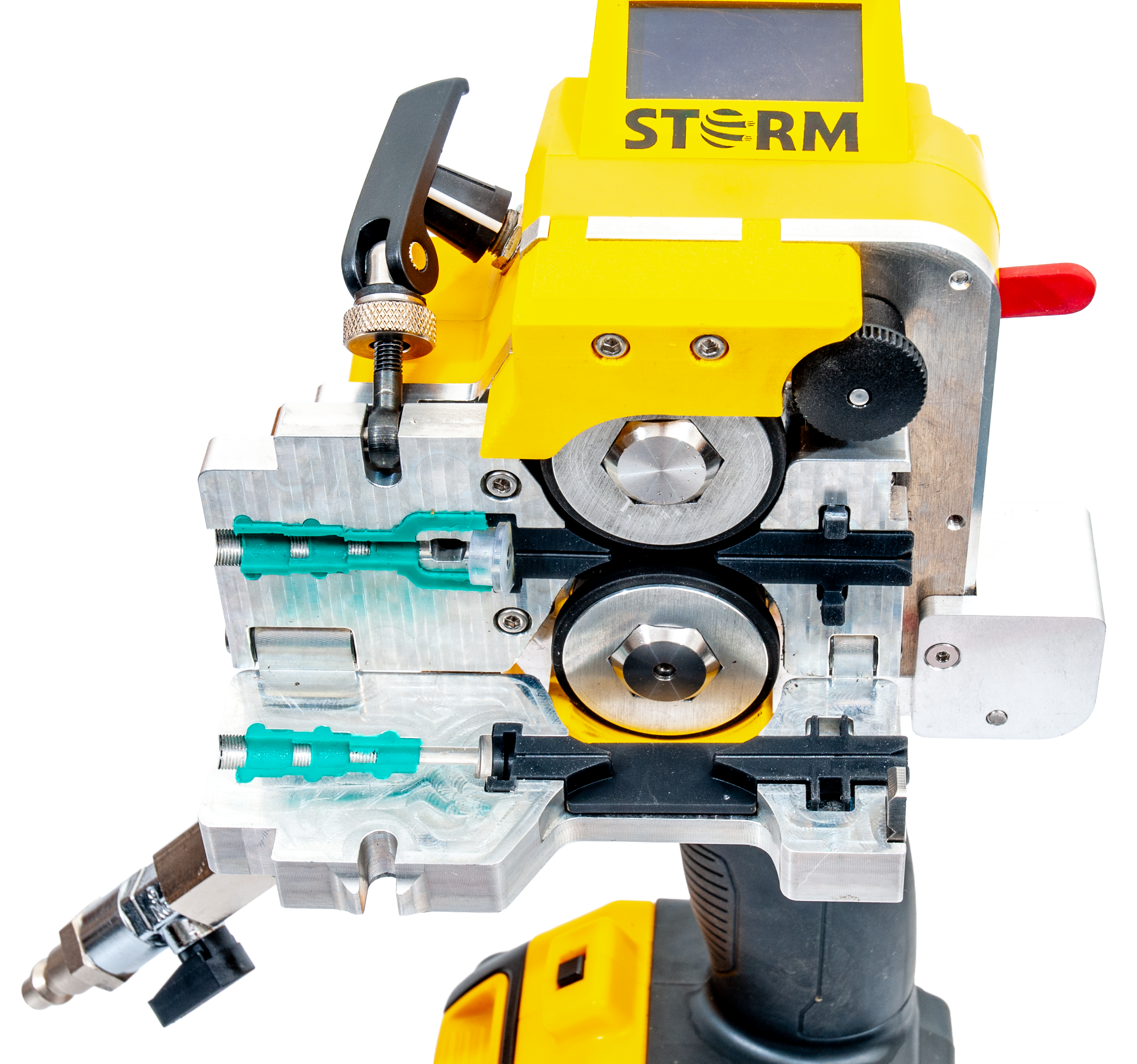

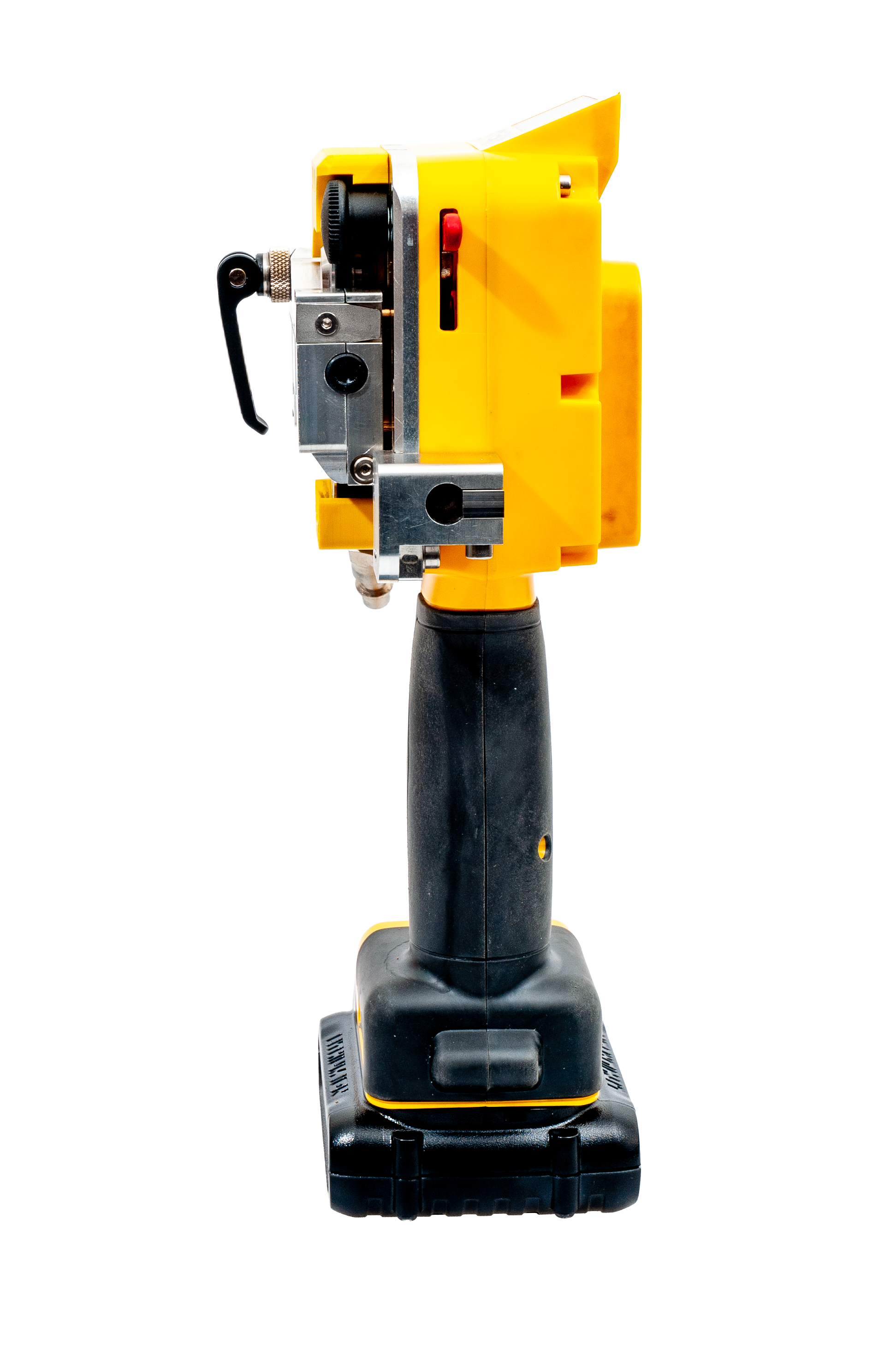

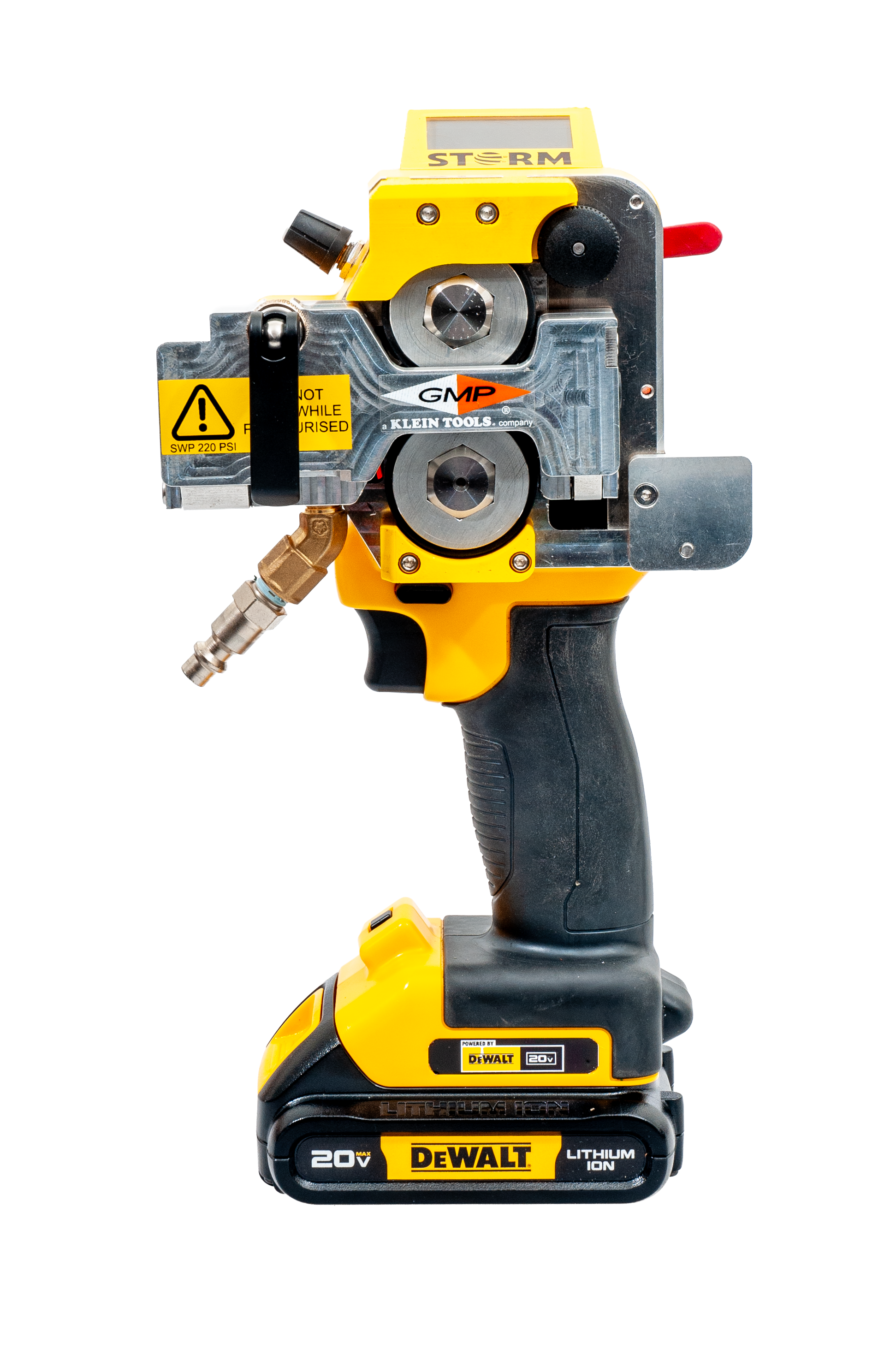

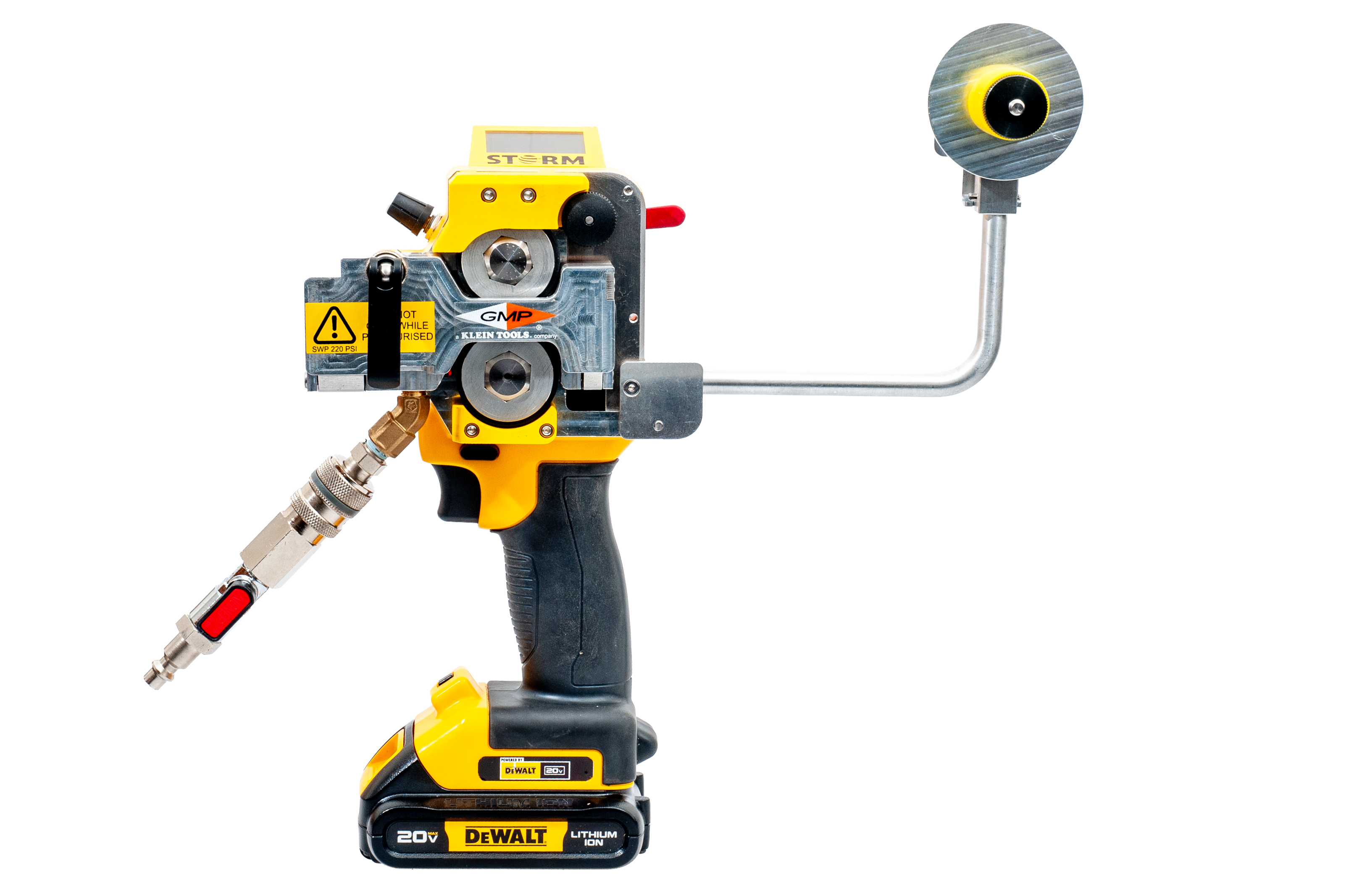

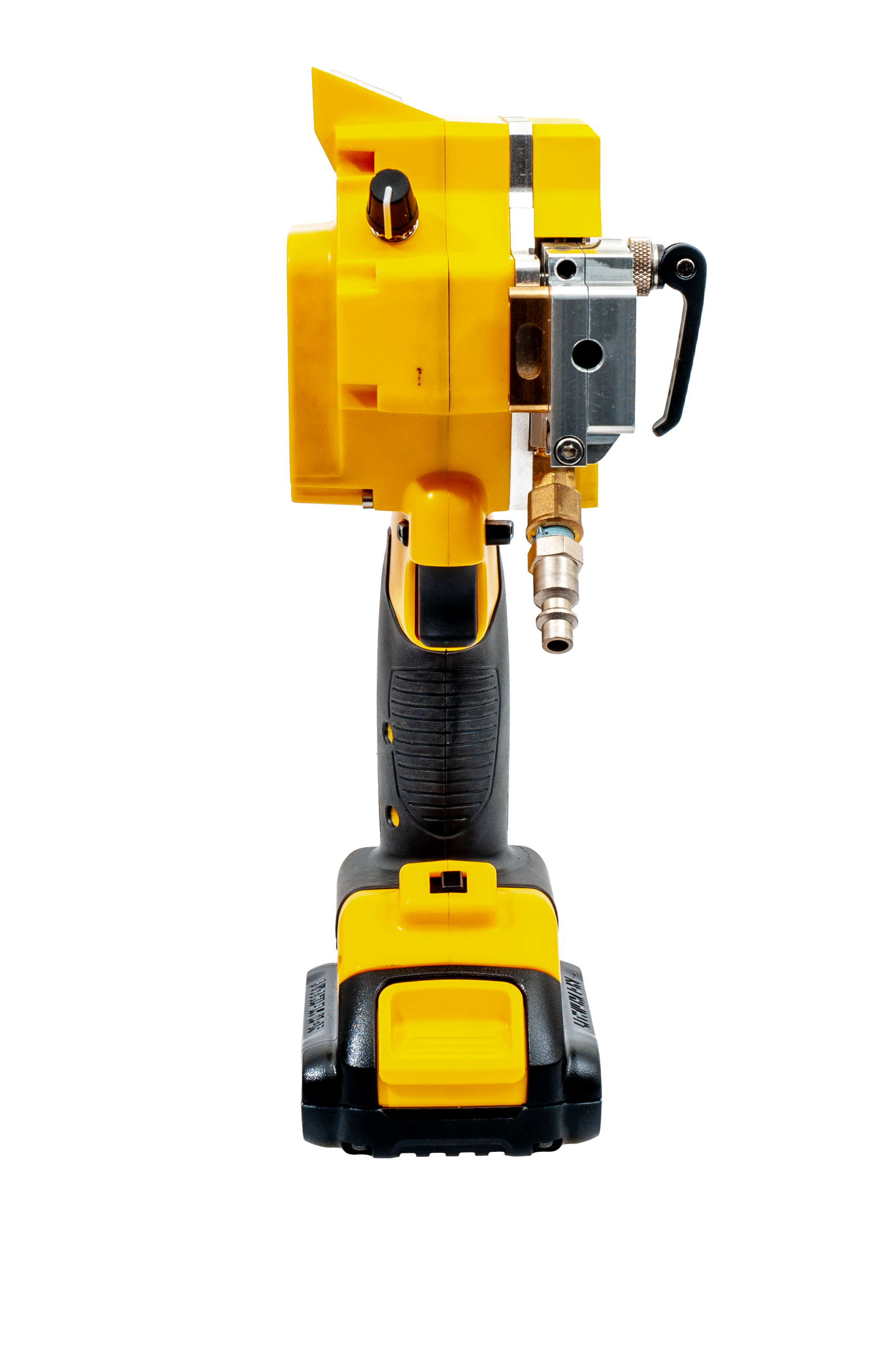

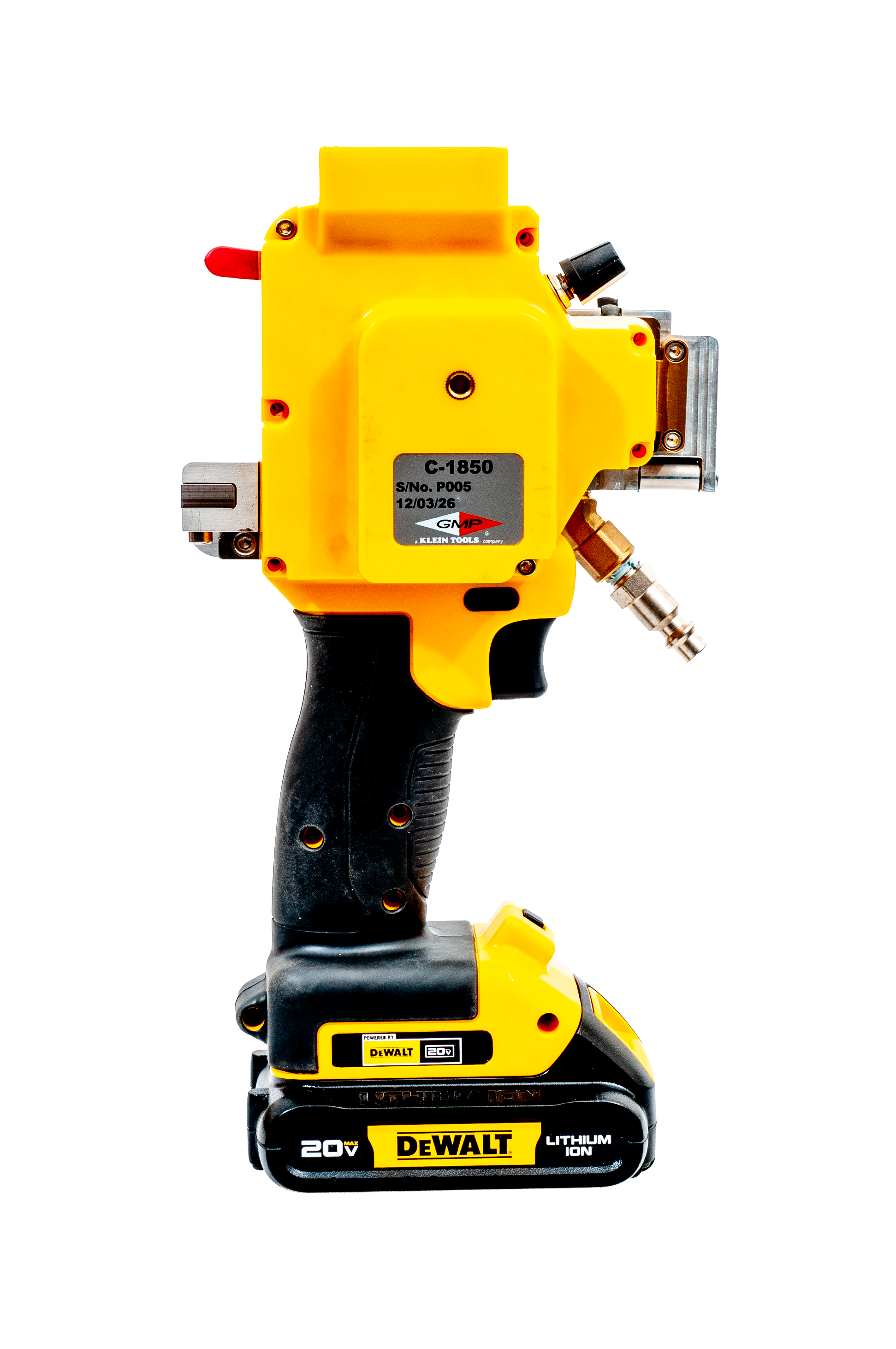

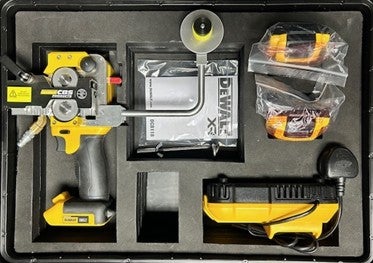

Storm with fiber reel Inside the Storm Fiber Blowing Gun Highly visible screen Storm with Fiber Reel Holder attached Storm with pigtail attached Base Storm Storm infeed view Storm outfeed view Storm rear view Heavy Duty Waterproof case for Storm case

GMP Storm Fiber Gun

91000
Storm LogoHandheld Battery-Powered Fiber Blowing Tool–FTTX Installation Tool for EPFU & Micro/Nano Cables (0.8–3 mm), Fits 5–8 mm Microducts


Key Features:
  • DEWALT®-Powered Performance: Reliable cordless operation for fast, efficient fiber installations in the field
  • Precision Fiber Blowing: Designed for EPFU and micro cables (0.8–3 mm) with smooth, damage-free installation
  • Compact Duct Compatibility: Optimized for 5, 7, and 8 mm microducts with single-size duct clamp (no adapters required)
  • High Speed: Blowing speeds up to 328 ft/min (100 m/min) with pushing force up to 6.7 lbf (30 N)
  • Advanced Electronic Controls: Built-in pushing force limiter, speed limiter, and cruise control for consistent performance

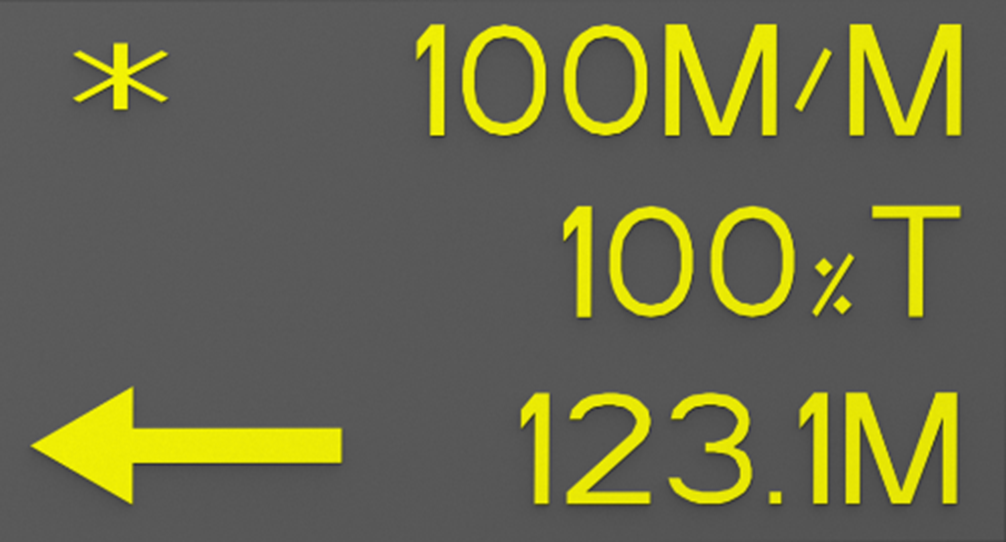

  • User-Friendly Display: 1.5” screen with large, easy-to-read text for real-time operation monitoring
  • Durable & Portable: Lightweight handheld design with rugged transport case for jobsite mobility



All GMP STORM PLUS (92000-XX) - Micro Cable Blowing Machine Kits include:
  • (3) cable guides to accommodate for 1.0-3.0 mm cable diameters.
  • (5) multi-size duct seals for 5 mm, 7 mm, and 8 mm microduct.
  • (1) 10-pack of single-size cable seals.

*Cable seal packs are specific to cable diameter. (See below).

P/N

Accommodating Cable Diameter

92000-12

1.0 - 1.2 mm

92000-16

1.3 - 1.6 mm

92000-20

1.7 - 2.0 mm

92000-23

2.1 - 2.3 mm

92000-26

2.4 - 2.6 mm

92000-30

2.7 - 3.0 mm

92000-MAX

Includes ALL Cable Seals for 1.0-3.0mm cable diameters (60 seals in total)

91000

Complete unit, *seals sold separately

Fiber Compatibility: 0.8 to 3mm (.031 to .118")
Blowing Speed: up to 328 ft/min (100 m/min)
Compatible Ducts: 5mm (.197") 7mm (.275"), 8mm (.315")
Pushing force: up to 6.7 lbf (30N)
Automation: Cruise controlled speed
Air Supply: 220 psi (15 Bar) max working pressure complete with suitable air conditioning (drying)
Electrical Supply: DEWALT® 20v • 2X 2Ah Battery packs and battery charger supplied as standard.
Control: manual trigger operated speed control, max speed and max torque limit settable
Machine size: H: 13" (330mm) D: 4.3" (110mm) L: 11.8" (300mm) with cable reel holder
Weight: 4 lbs (1.8kg) with supplied battery installed
Case size: H: 8.1" (206mm) D: 16.8" (428mm) x L: 20.6" (524mm)
Environment: 32° to 122°F (0°C to +50°C) (Usage) 14° to 158°F (-10C to +70C) (Storage)

Accessories

P/N 91000 GMP STORM MICRO CABLE BLOWING MACHINE 4 LBS. (1.8kg) (Tool without seals and guides)

91001 Drive Wheel
91002 Drive Tire Kit 10/PK
91003 Airbox/Duct Seals 5/PK
91004-12 Cable Seals 1.0-1.2MM 10/PK
91004-16 Cable Seals 1.3-1.6MM 10/PK
91004-20 Cable Seals 1.7-2.0MM 10/PK
91004-23 Cable Seals 2.1-2.3MM 10/PK
91004-26 Cable Seals 2.4-2.6MM 10/PK
91004-30 Cable Seals 2.7-3.0MM 10/PK
91005-12 Infeed Guides 1.2MM
91005-18 Infeed Guides 1.8MM
91005-24 Infeed Guides 2.4MM
91005-30 Infeed Guides 3.0MM
91007 Cable Spool Holder Kit
91008 Cable Pigtail Holder

Batteries available through online or local DEWALT retailers
