6 BOLT OPGW POCKETBOOK GRIPS
Contact us for availability and shipping details.......

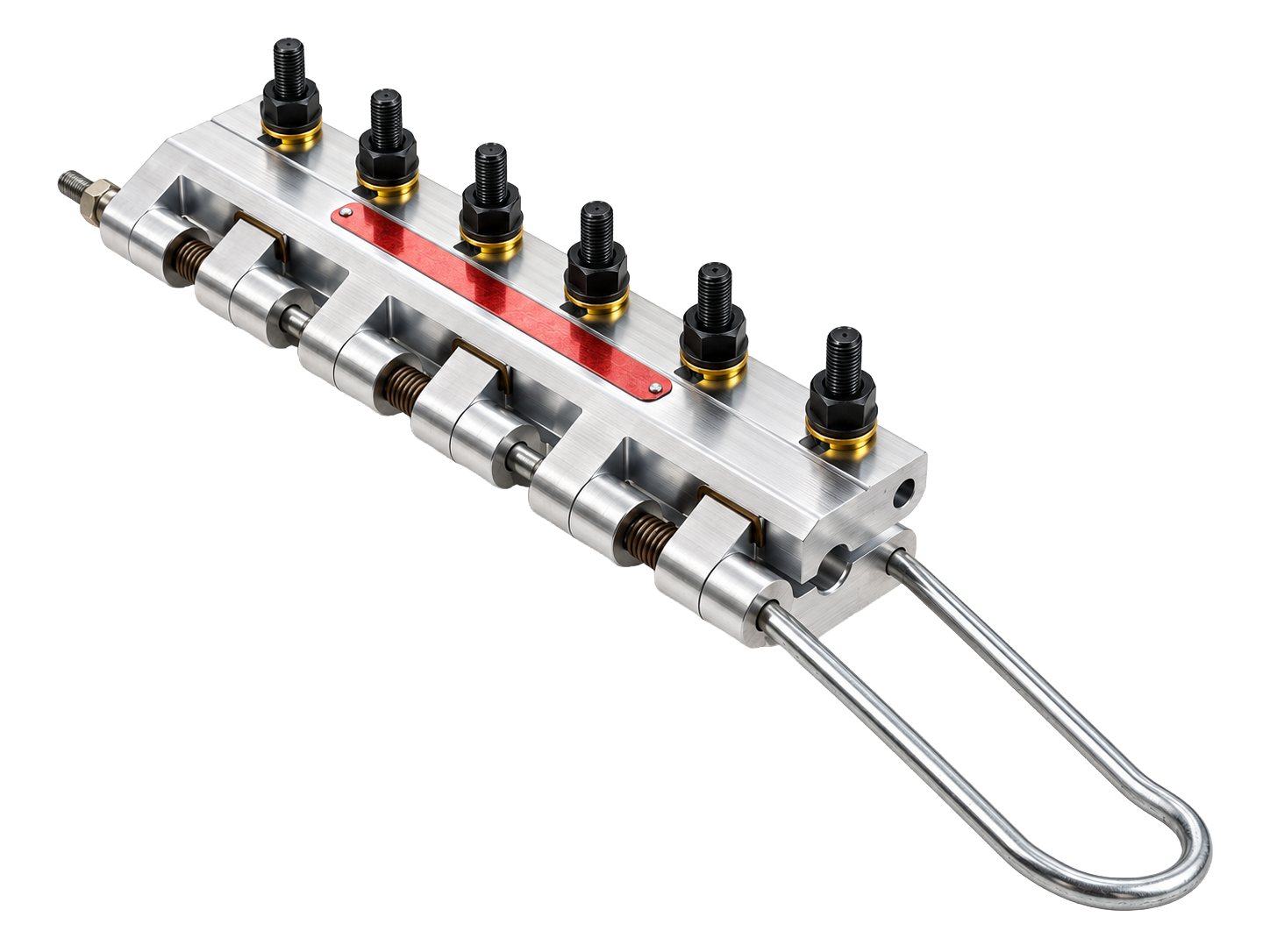

The NEW Self-Closing 6 Bolt OPGW Pocketbook Grips from GMP Tools.
For Use with Tensioning OPGW and Other Aerial Conductors Used in the Telecom Industry, Electric Utility, and Line Construction Industry.
The NEW lightweight come-along 6 Bolt OPGW Pocketbook Grips from General Machine Products, are designed to combine durability with ease of use.
Made from high-strength 6061 aluminum, combined with competitors' products being up to 40% heavier, GMP grips help reduce fatigue during handling and setup. Their patent-pending self-closing design allows for effortless one-handed installation, users can simply snap the grip onto the line and tighten it, eliminating the hassle associated with traditional grips. These features set a new benchmark for efficiency and convenience in the industry.
- Weight reduction- competitors' products are up to 40% heavier!
- One handed installation
- Innovative self closing hinge
- High precision design prevents crushing or damaging fiber
| Part Number | Conductor Diameter | Part Number | Conductor Diameter | Part Number | Conductor Diameter |
| 78000-041 | .410-.419 | 78000-070 | .700-.709 | 78000-099 | .990-.999 |
| 78000-042 | .420-.429 | 78000-071 | .710-.719 | 78000-100 | 1.000-1.009 |
| 78000-043 | .430-.439 | 78000-072 | .720-.729 | 78000-101 | 1.010-1.019 |
| 78000-044 | .440-.449 | 78000-073 | .730-.739 | 78000-102 | 1.020-1.029 |
| 78000-045 | .450-.459 | 78000-074 | .740-.749 | 78000-103 | 1.030-1.039 |
| 78000-046 | .460-.469 | 78000-075 | .750-.759 | 78000-104 | 1.040-1.049 |
| 78000-047 | .470-.479 | 78000-076 | .760-.769 | 78000-105 | 1.050-1.059 |
| 78000-048 | .480-.489 | 78000-077 | .770-.779 | 78000-106 | 1.060-1.069 |
| 78000-049 | .490-.499 | 78000-078 | .780-.789 | 78000-107 | 1.070-1.079 |
| 78000-050 | .500-.509 | 78000-079 | .790-.799 | 78000-108 | 1.080-1.089 |
| 78000-051 | .510-.519 | 78000-080 | .800-.809 | 78000-109 | 1.090-1.099 |
| 78000-052 | .520-.529 | 78000-081 | .810-.819 | 78000-110 | 1.100-1.109 |
| 78000-053 | .530-.539 | 78000-082 | .820-.829 | 78000-111 | 1.110-1.119 |
| 78000-054 | .540-.549 | 78000-083 | .830-.839 | 78000-112 | 1.120-1.129 |
| 78000-055 | .550-.559 | 78000-084 | .840-.849 | 78000-113 | 1.130-1.139 |
| 78000-056 | .560-.569 | 78000-085 | .850-.859 | 78000-114 | 1.140-1.149 |
| 78000-057 | .570-.579 | 78000-086 | .860-.869 | 78000-115 | 1.150-1.159 |
| 78000-058 | .580-.589 | 78000-087 | .870-.879 | 78000-116 | 1.160-1.169 |
| 78000-059 | .590-.599 | 78000-088 | .880-.889 | 78000-117 | 1.170-1.179 |
| 78000-060 | .600-.609 | 78000-089 | .890-.899 | 78000-118 | 1.180-1.189 |
| 78000-061 | .610-.619 | 78000-090 | .900-.909 | 78000-119 | 1.190-1.199 |
| 78000-062 | .620-.629 | 78000-091 | .910-.919 | 78000-120 | 1.200-1.209 |
| 78000-063 | .630-.639 | 78000-092 | .920-.929 | 78000-121 | 1.210-1.219 |
| 78000-064 | .640-.649 | 78000-093 | .930-.939 | 78000-122 | 1.220-1.229 |
| 78000-065 | .650-.659 | 78000-094 | .940-.949 | 78000-123 | 1.230-1.239 |
| 78000-066 | .660-.669 | 78000-095 | .950-.959 | 78000-124 | 1.240-1.249 |
| 78000-067 | .670-.679 | 78000-096 | .960-.969 | 78000-125 | 1.250-1.259 |
| 78000-068 | .680-.689 | 78000-097 | .970-.979 | ||
| 78000-069 | .690-.699 | 78000-098 | .980-.989 |
6 BOLT SPRING LOCK GRIP SPECIFICATIONS:
Weight: 18 lbs (8.16kg)

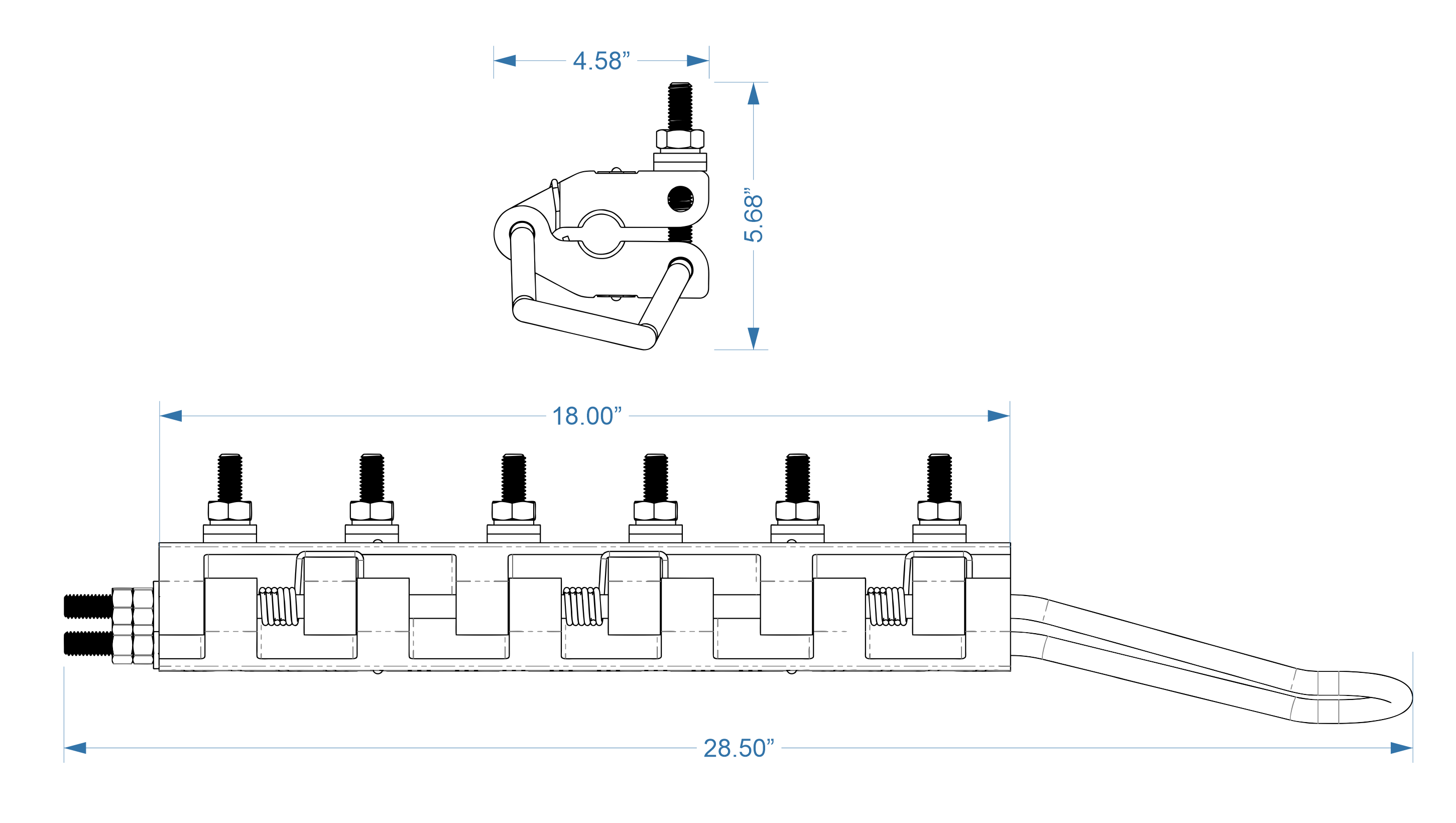

Dim: L: 28.5 in. W: 4.58 in. H: 5.68 in.
Max tension limit: 12,000 lbs or 50% of rated strength of conductor, whichever is smaller.
Sizes: .410 - 1.259 inch dia.
Bolt size: 1/2 inch steel
Bale: 1/2 inch CR steel
Final Torque: 50 ft lb
Body: Extruded aluminum
