WEB SLITTER

Web Slitter
Web Slitter Replacement Blades for Web Slitter

WEB SLITTER

82730

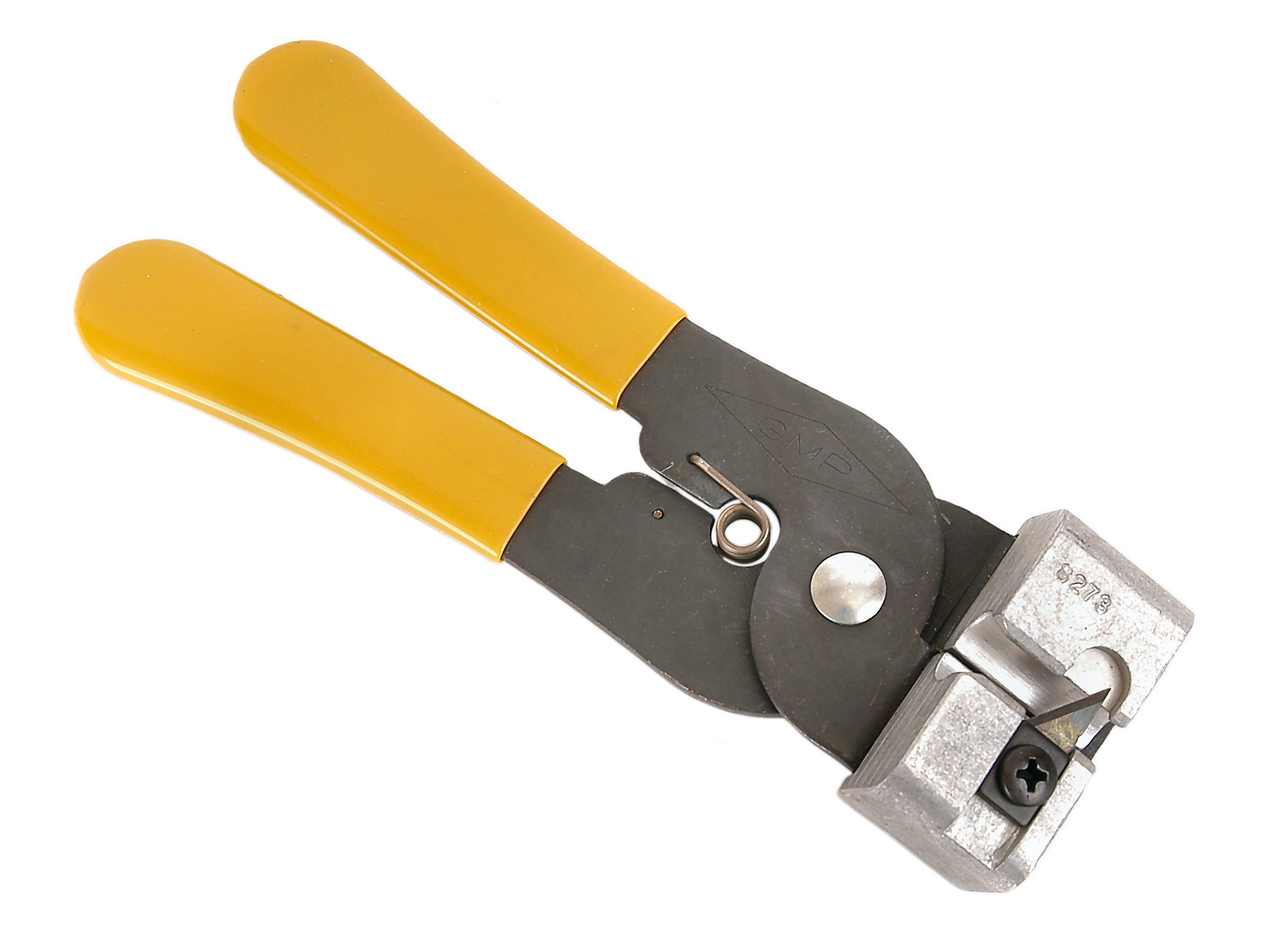

You can use this plier-type tool to slit the web between the strand and cable core on figure 8 cable and Aerial Duct.

Note: All strand size references are bare strand sizes.



  • All you have to do is hold the block of the slitter parallel to the strand and draw it along the cable and strand
  • This self-guiding tool makes sure the blade pierces the web and not the sheath or strand jacket
  • The cutting blade is held with one screw and reinforced with a square washer to prevent bending
  • The tool is zinc-plated to resist corrosion

P/N        Description                                                                                                                                 Weight
82730    Model B Web Slitter for .250 in. (Also referred to as a 305B tool) (6.4mm) messenger dia.      10 oz. (.3kg)

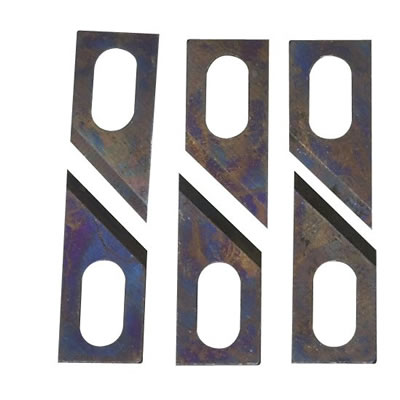

82731    Replacement Blades: 25/pk.                                                                                                        2 oz. (56g)
