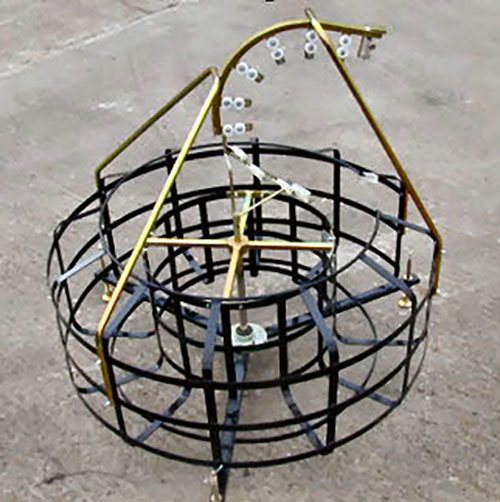

Micro Cable Fleeter

Micro Cable Fleeter

89002

The Micro Cable Fleeter replaces the manual method of “figure eighting” cable at the midpoint and provides protection and security for the cable. Following installation of the cable in the first leg of the duct route the balance of the cable is removed from the drum and fed into the “Fleeter”, thereby releasing the cable end ready for blowing into the second leg. The fleeter provides a smooth and simple system while ensuring cable protection from pedestrians or vehicles and prevents contamination from mud, soil or dust.

  • The Fleeter is designed to work in conjunction with the Air Stream Cable Blowing Machine
  • Designed to accept 5 - 8.5mm cable
  • It has a nominal capacity to store 6500 ft. (2000 meters) of 8.5mm diameter cable
  • Note: Please have your microduct O.D. available when ordering to select the correct duct clamp that’s included with your purchase.

P/N 89002   Micro Cable Fleeter for 5 – 8.5mm Cable   Weight: 99 lbs. (45kgs)

Cable diameter: 5 – 8.5mm (0.196 in. – 0.334 in.) OD Max
Cable Storage Length: 6500 Feet (2000 Meters) of 8.5mm diameter cable
Microduct Size: 8 mm – 18 mm ø

Dimensions

Basket Diameter: 47.25 in. (1200mm)
Max. Width: 50.6 in. (1825mm)
Height: 55.9 in (1420mm)

Available Duct Clamps

All the kits include 2 each of the individual duct clamp for the duct O.D. specified.
The kits for the 16mm and 18mm O.D. duct include a set of screws that hold the duct clamps into the duct clamp holders and are unique to those size clamps.

8mm O.D. duct       P/N 32894
8.5mm O.D. duct    P/N 33536
10mm O.D. duct     P/N 32880
12mm O.D. duct     P/N 32911
21.7mm O.D. duct  P/N 32914
14mm O.D. duct     P/N 33525
16mm O.D. duct     P/N 32917
18mm O.D. duct     P/N 33533

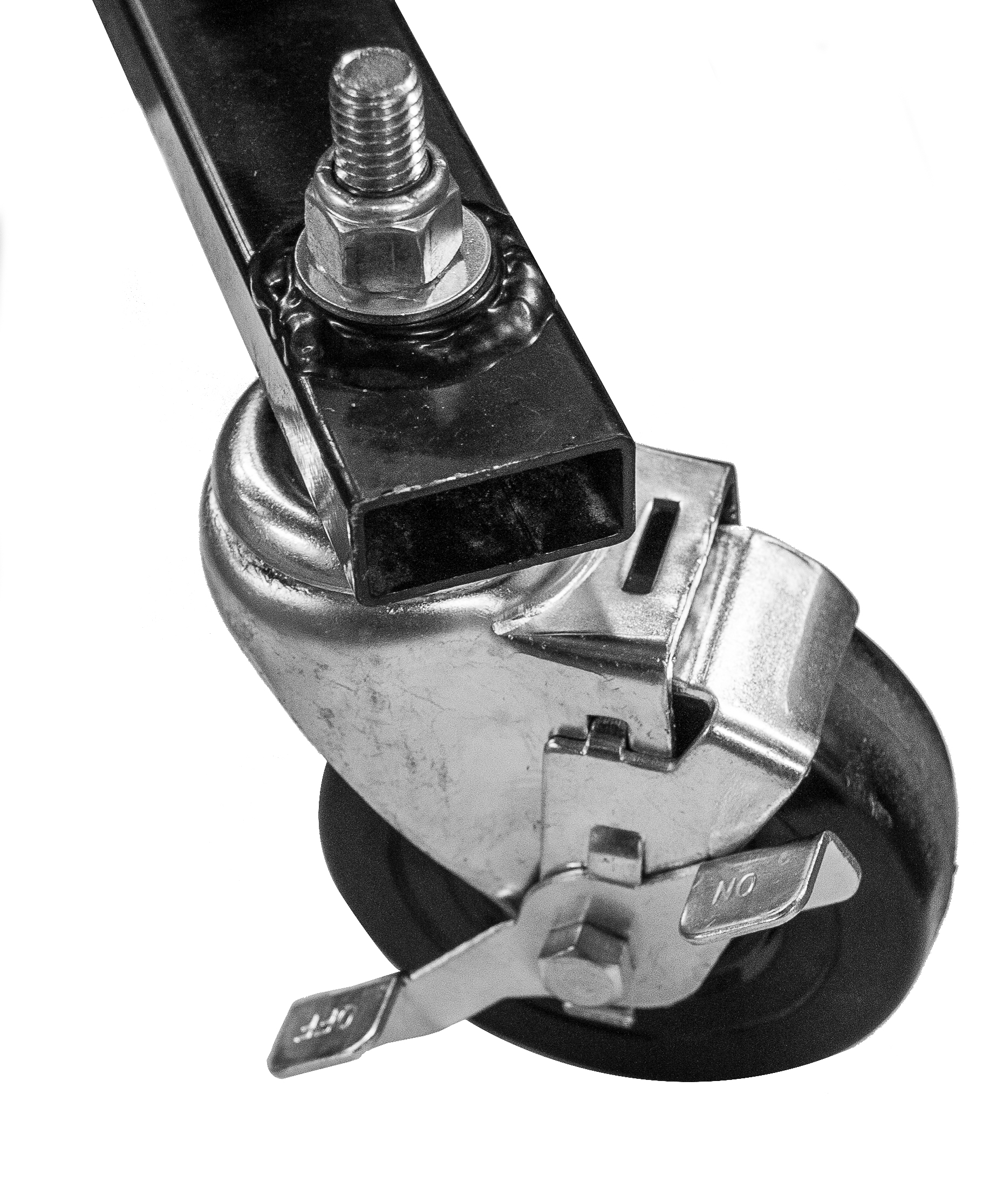

Fleeter Wheel Kit
89296

Cable Fleeter Wheel Kit provides mobility for the Cable Fleeter. Installation is easy: Remove the leveling feet and replace them with the casters and retaining nut and washer provided in this Kit.

  • Allows you to easly move the loaded fleeter around the yard and onto a trailer for transport.
  • Affords one person positioning at the worksite.
  • All three wheels are lockable.
  • Set of 3 wheels
