Cable Overblowing Junction Box for 1-1/4, 1-1/2 and 2 in. SDR

junction box
junction box

Cable Overblowing Junction Box for 1-1/4, 1-1/2 and 2 in. SDR

Multiple

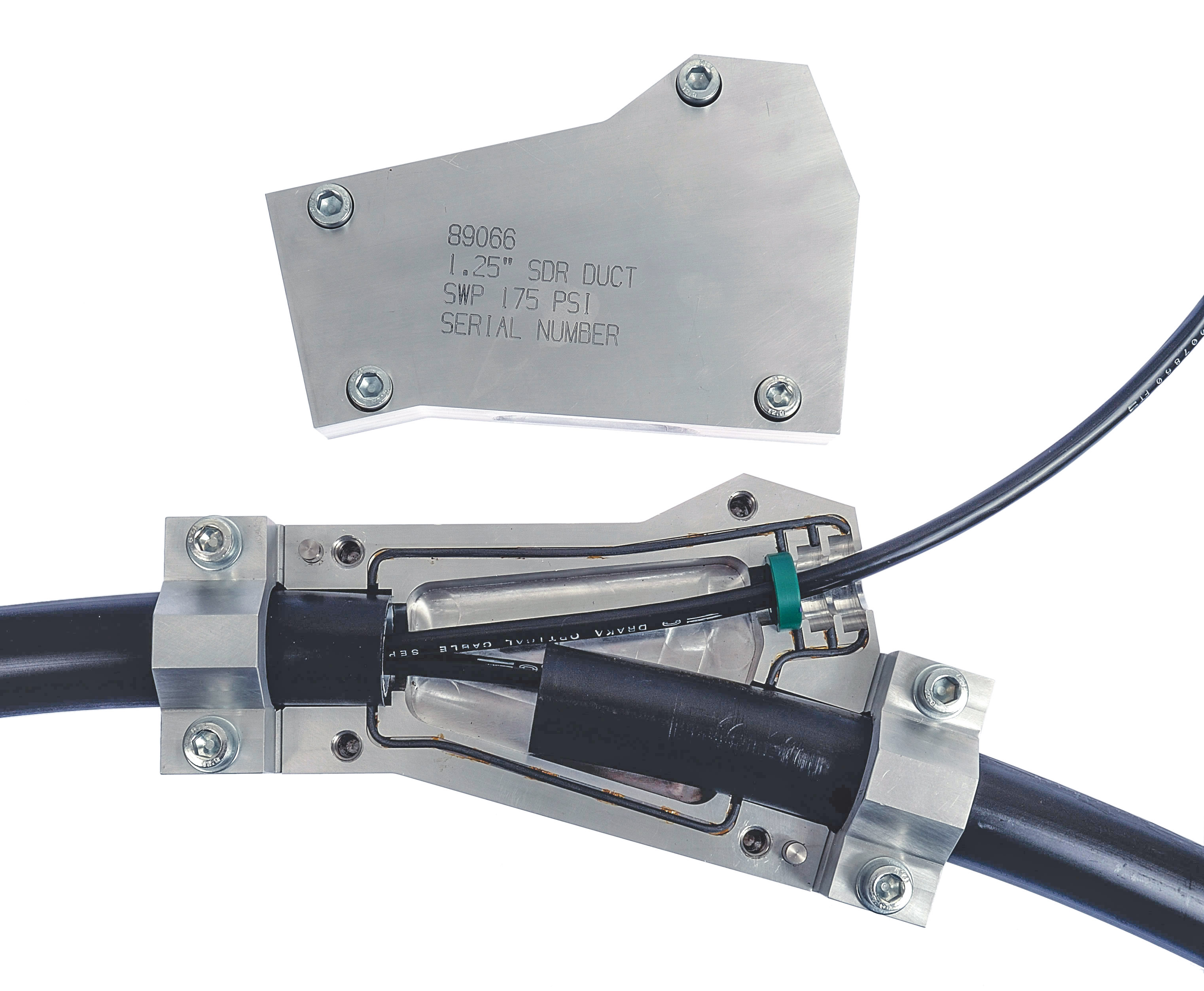

Designed to install a new cable or innerduct into an existing occupied 1-1/4 in., 1-1/2 in. and 2 in. innerduct (subject to space being available). The Single Size Junction Box comprises an aluminium base and lid that form a pressurized air chamber into which one end of an existing occupied innderDuct can be attached. The existing cable can exit the box through an opening that has three cable seal slots, one of which will house the seal to suit the size of the existing cable. The third branch is then connected to a Cable Blowing Machine via a short slave length of innerduct for the installation of the extra cable or tube(s). A collection of seals ranging from 7.5 – 20 mm are included with junction box.
  • The maximum diameter of a new cable for installation is dependent on the diameter of the existing cable and the Duct size.
  • Min flow acceptance: 700 cfm (20m³/min)

Part Number:

P/N 89066

Duct Range Limit:

1-1/4 in. SDR

Installation Principle:

Viscous Drag

Max Operating Pressure:

175 psi (12 Bar)

Length:

12" (305 mm)

Width:

6" (152 mm)

Height:

3" (76 mm)

Weight:

9 lbs. (4kg)

Min Flow Acceptance:

250 cfm (7m³/min)

Part Number:

P/N 89067

Duct Range Limit:

1-1/2 in. SDR

Installation Principle:

Viscous Drag

Max Operating Pressure:

175 psi (12 Bar)

Length:

12" (305 mm)

Width:

6" (152 mm)

Height:

3" (76 mm)

Weight:

9 lbs. (4kg)

Min Flow Acceptance:

375 cfm (10m³/min)

Part Number:

P/N 89068

Duct Range Limit:

2 in. SDR

Installation Principle:

Viscous Drag

Max Operating Pressure:

175 psi (12 Bar)

Length:

12" (305 mm)

Width:

11.5" (292 mm)

Height:

3.3" (84 mm)

Weight:

14.5 lbs. (6.6kg)

Min Flow Acceptance:

700 cfm (20 m3/min)

Cable Seals (sold each)

Part Number

Description

33690

Seal 7.5-9mm

33218

Seal 9-10.5mm

33219

Seal 10.5-12mm

33220

Seal 12-14mm

33221

Seal 14-16mm

33222

Seal 16-18mm

33223

Seal 18-20mm
