Fiber Blowing Trailer Airbox Attachment

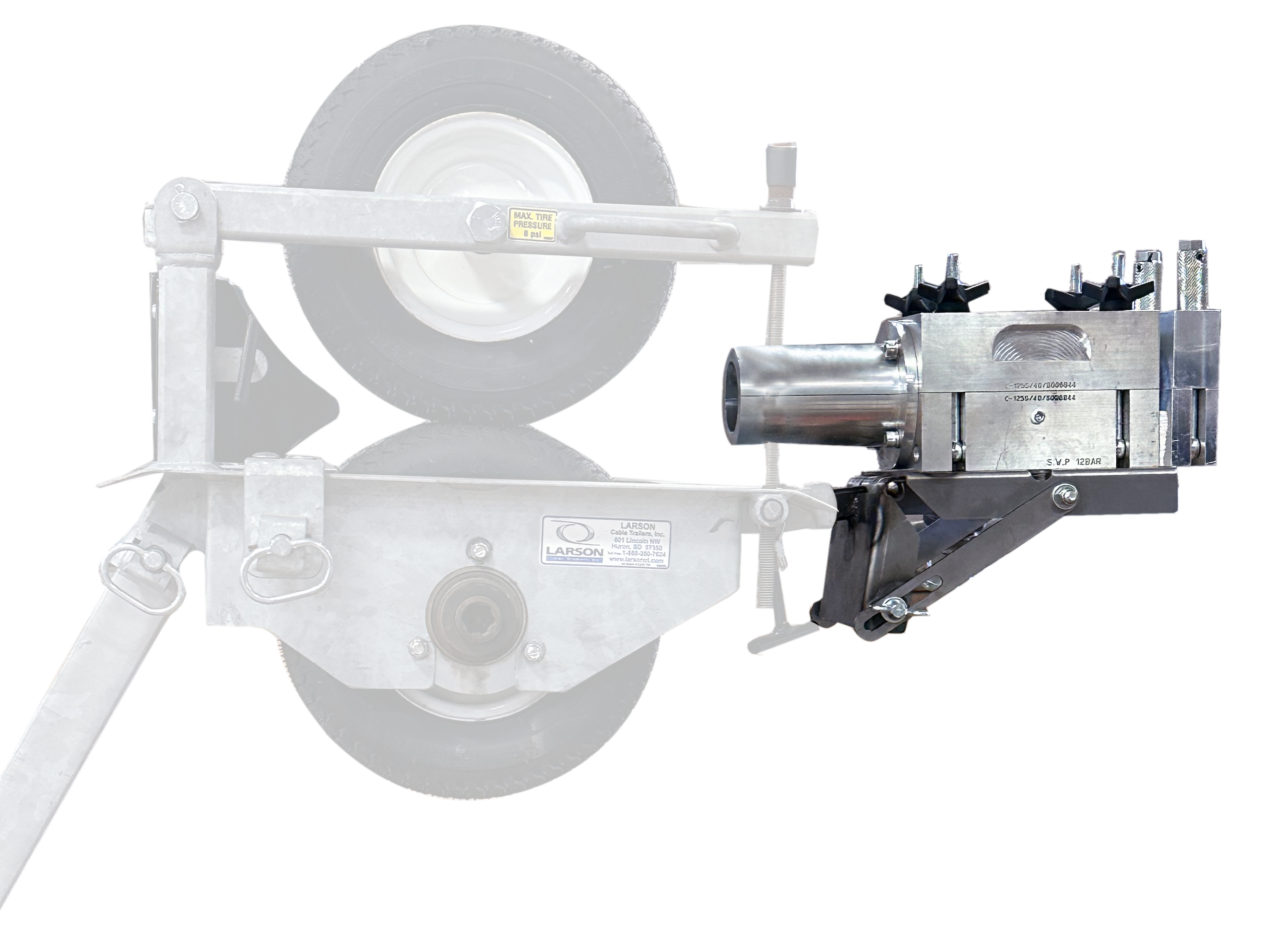

The 1-inch square tube receiver attachment is designed to adapt and function as a direct bolt-in solution for existing fiber blowing trailers. It enables these trailers to be compatible with the GMP Tornado airbox, duct clamps, cable guides, and seals. This attachment works seamlessly with all existing GMP Tornado duct clamps and seals.
Included components:

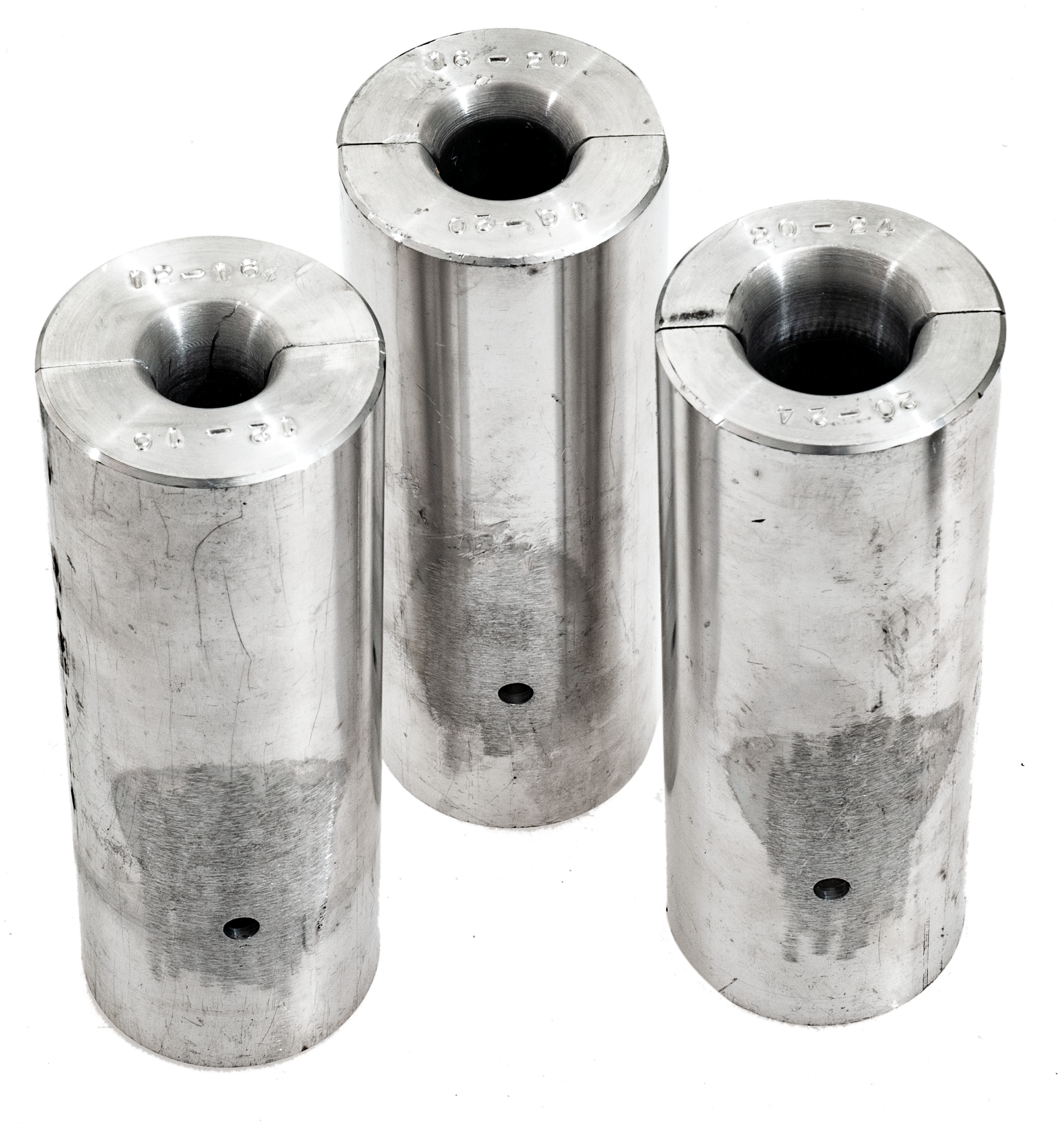

12–24 mm cable guides*

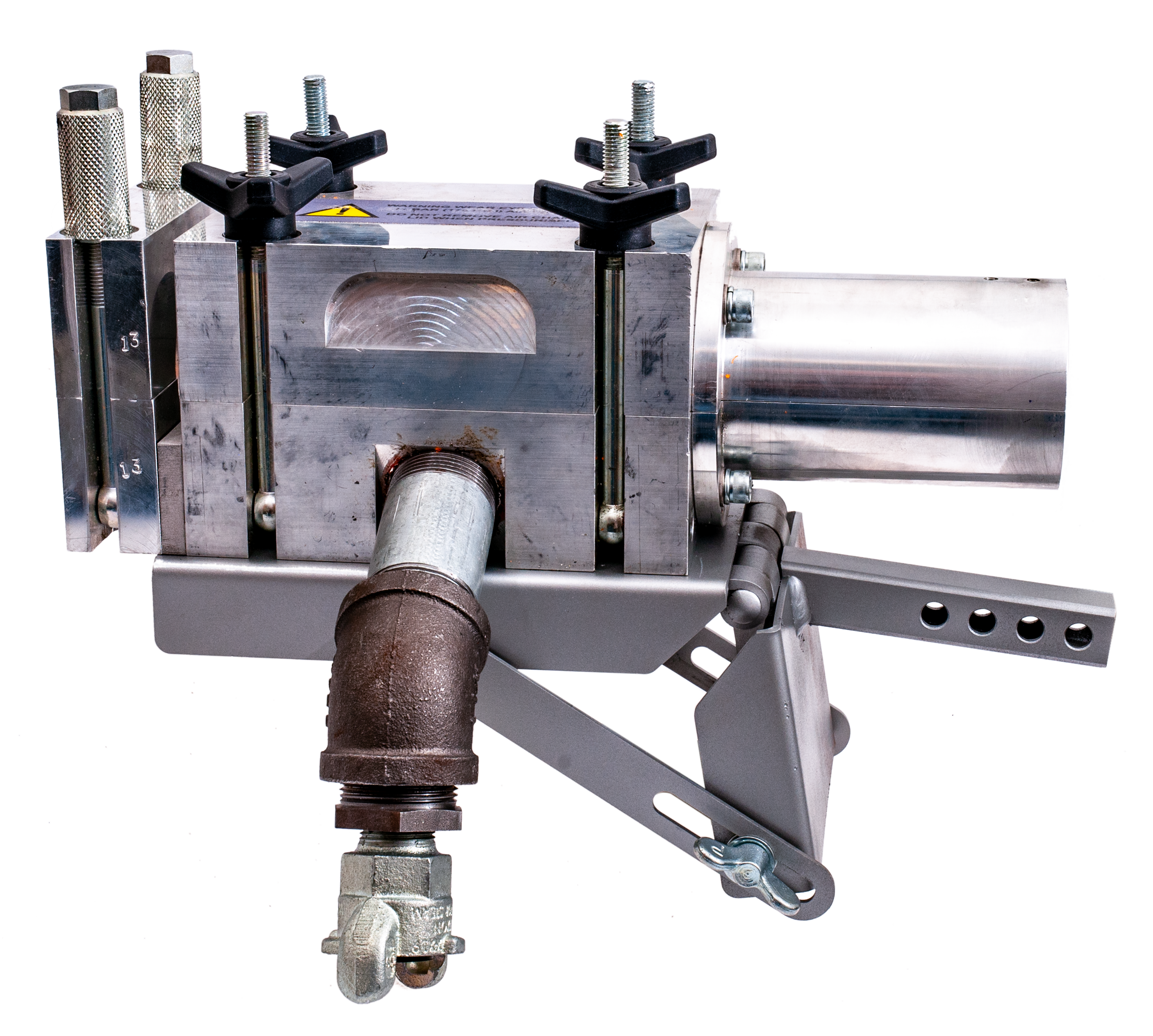

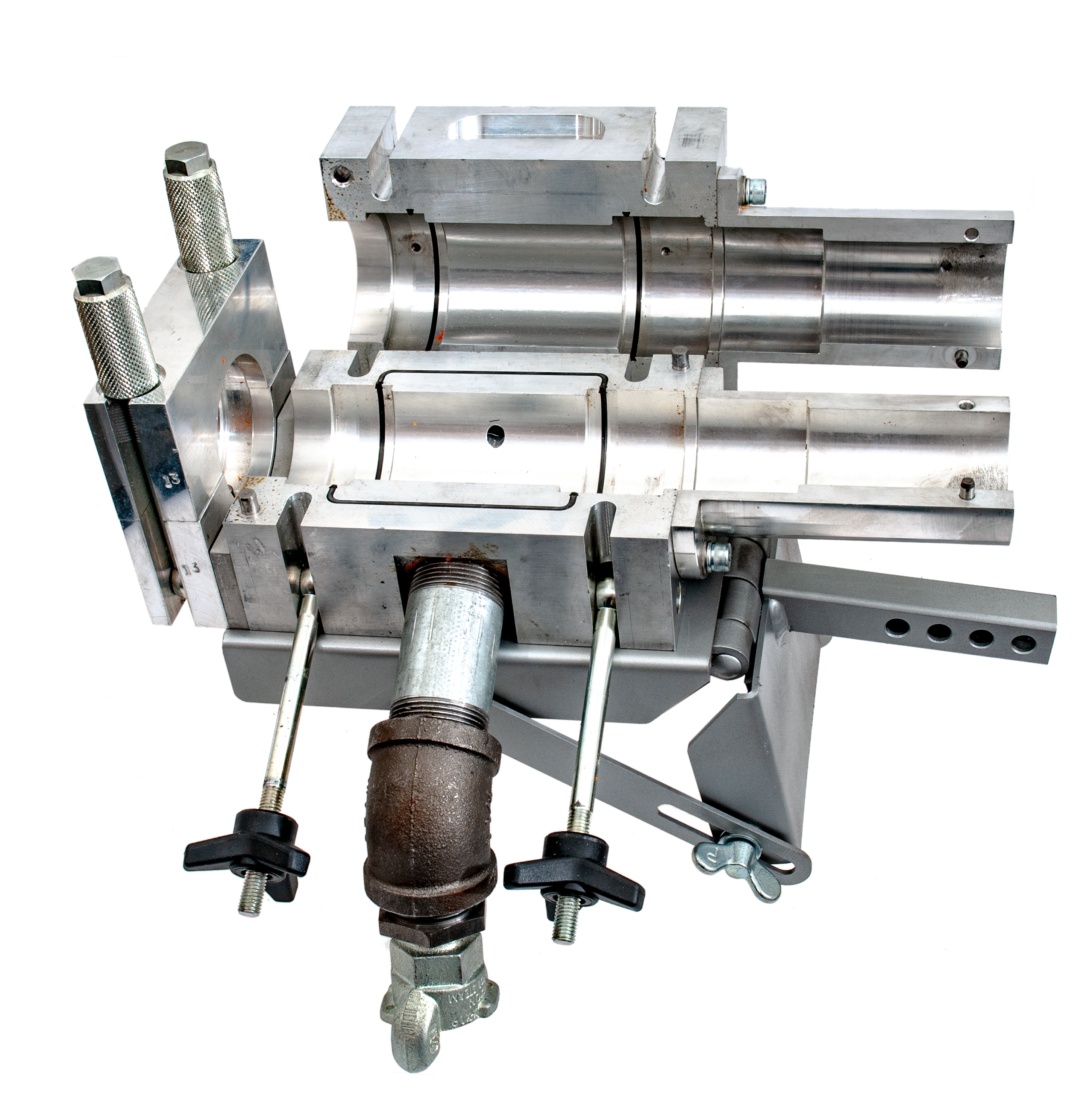

Fiber cable blowing airbox
Fiber blowing trailer adapter plate with adjustable distance and angle

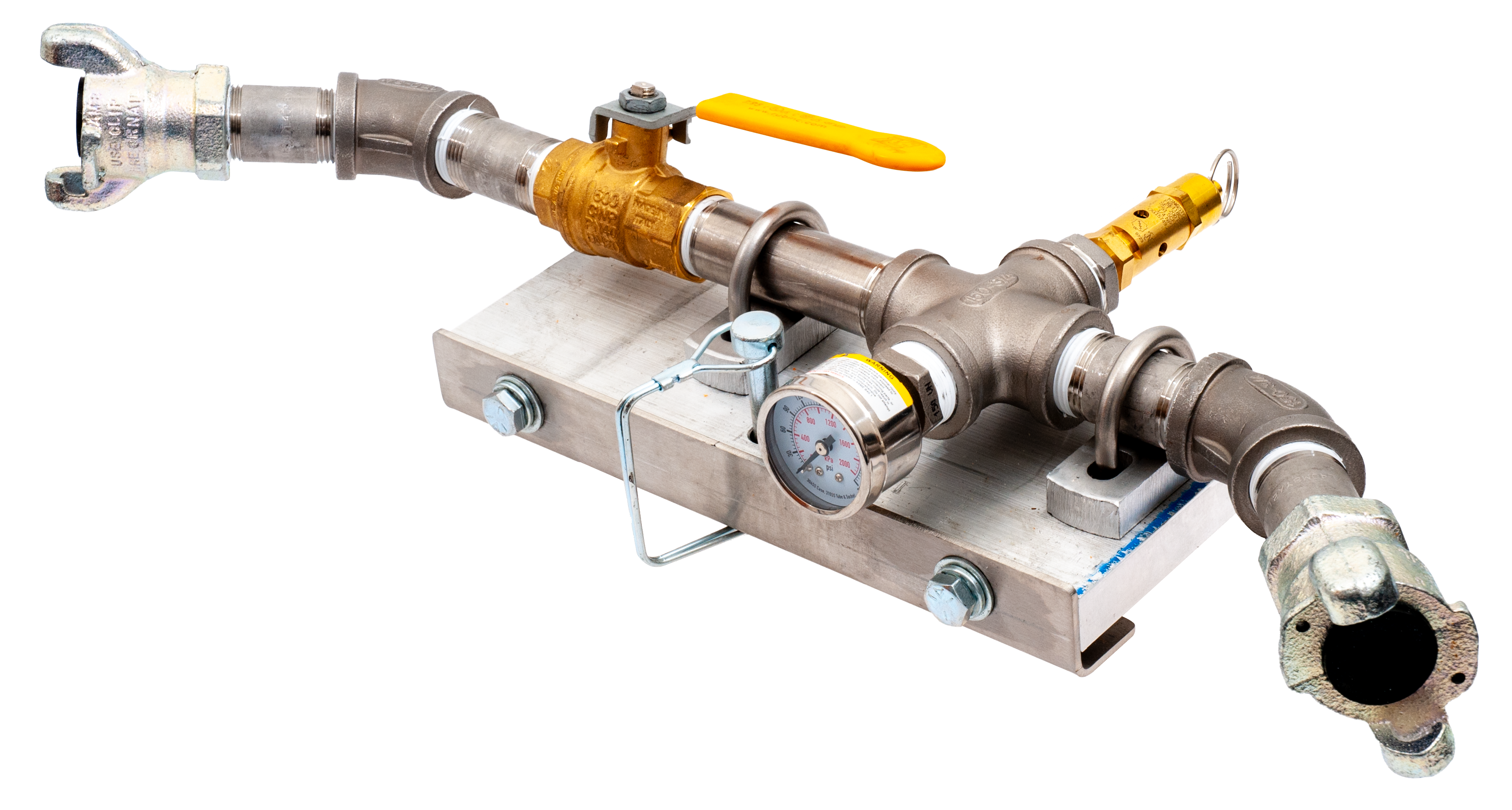

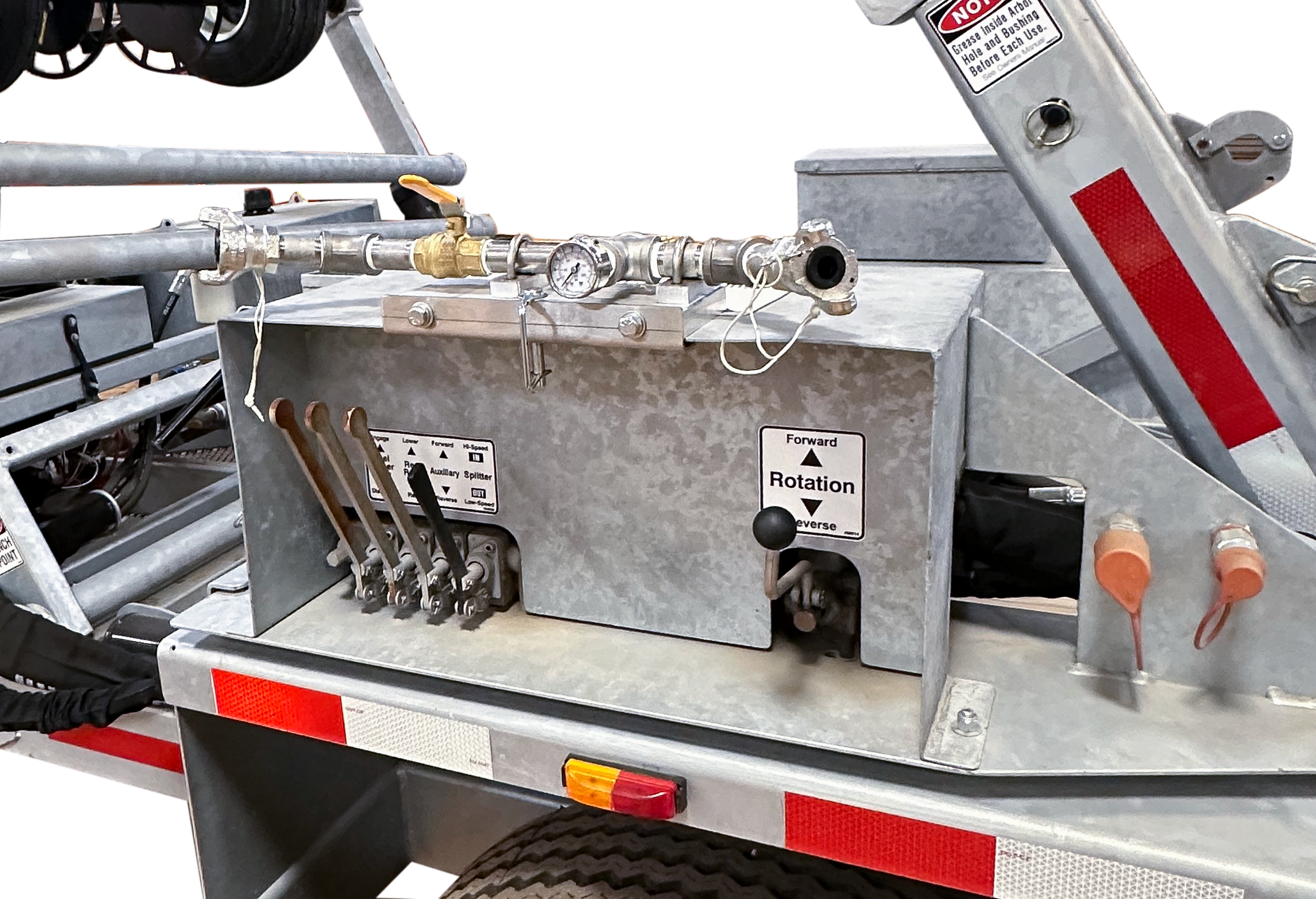

Airflow valve and pressure gauge assembly with a standard 2-jaw air hose fitting

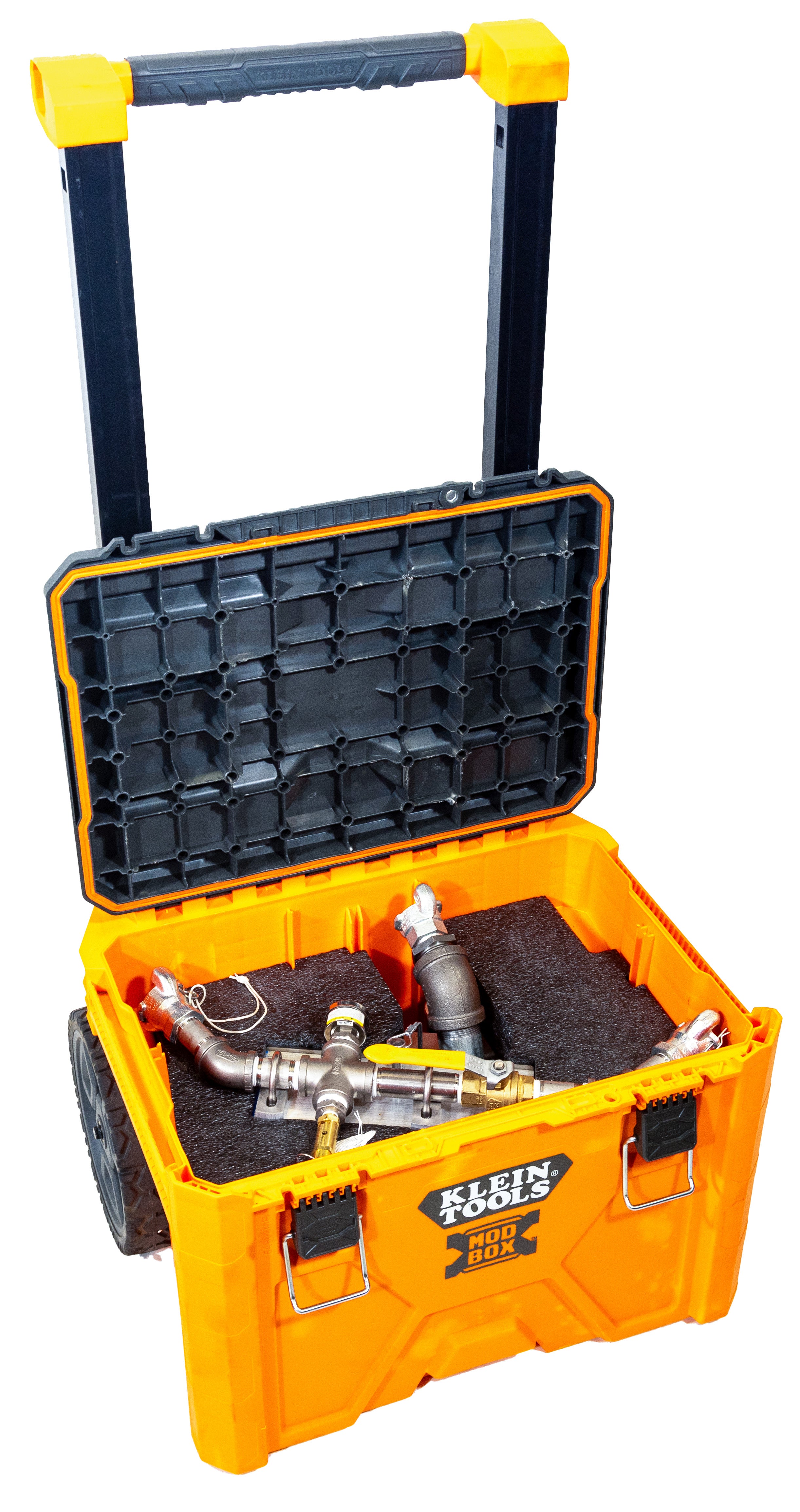

Klein Modbox storage case
*Contact GMP for additional sizes

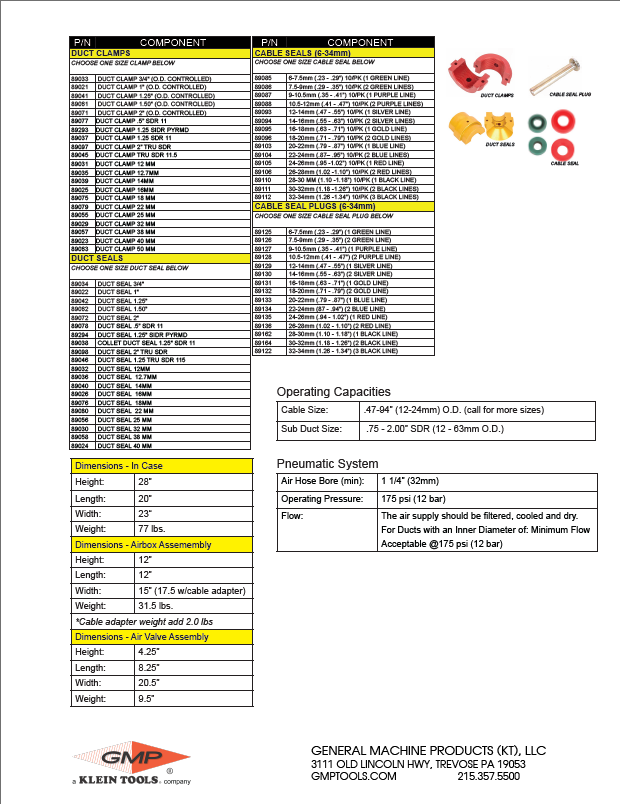

Operating Capacities
Cable Size: | .47-94" (12-24mm) O.D. (call for more sizes) |
Sub Duct Size: | .75 - 2.00" SDR (12 - 63mm O.D.) |
Pneumatic System
Air Hose Bore (min): | 1 1/4" (32mm) |
Operating Pressure: | 175 psi (12 bar) |
Flow: | The air supply should be filtered, cooled and dry. For Ducts with an Inner Diameter of: Minimum Flow Acceptable @175 psi (12 bar) |
Dimensions - In Case
Height: | 28" |
Length: | 20" |
Width: | 23" |
Weight: | 77 lbs |
Dimensions - Airbox Assembly
Height: | 12" |
Length: | 12" |
Width: | 15" (17.5" with cable adapter) |
Weight: | 31.5 lbs* |
*Cable adapter weight add 2.0 lbs | |
Dimensions - Air Valve Assembly
Height: | 4.25" |
Length: | 8.25" |
Width: | 20.5" |
Weight: | 9.5 lbs |
