Line Blowing Kits for Innerduct
89815, 89817, 89818
LINE BLOWING
The GMP family of Line Blowing products are designed to be both rugged and modular. Available are a collection of interchangeable accessories that will allow you to efficiently blow line ranging from .75 in. innerduct to 5 in. conduit.

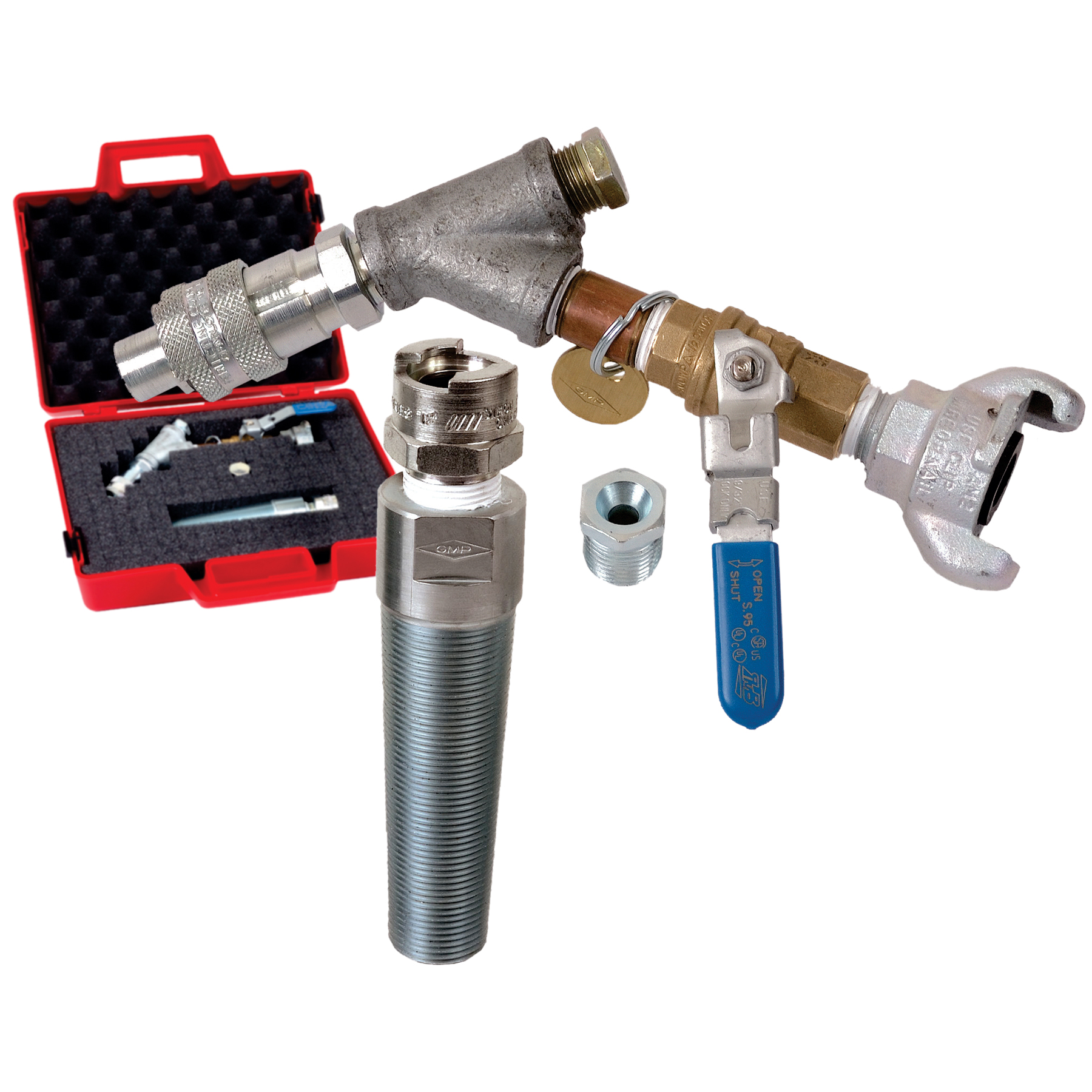

These three kits respectively contain the essentials for blowing pulling line thru innerduct.
The kit includes;
- Control valve
- 1/4 in. Pulling Line Adapter
- 2 claw Chicago fitting for connecting to the air supply
- Quick disconnect fitting for attachment to the sealoffs
- Solid Plug for pressurizing ducts
- A protective carrying case
| P/N | Innerduct Line Blowing Kits | Weight |
89815 | Blow Gun Kit for 1 1/4 in. Innerduct | 4.6 lbs. (2.08kg) |
89817 | Blow Gun Kit for 1 1/2 in. Innerduct | 5.9 lbs. (2.67kg) |
89818 | Blow Gun Kit for 2 in. Innerduct | 7.1 lbs. (3.22kg) |

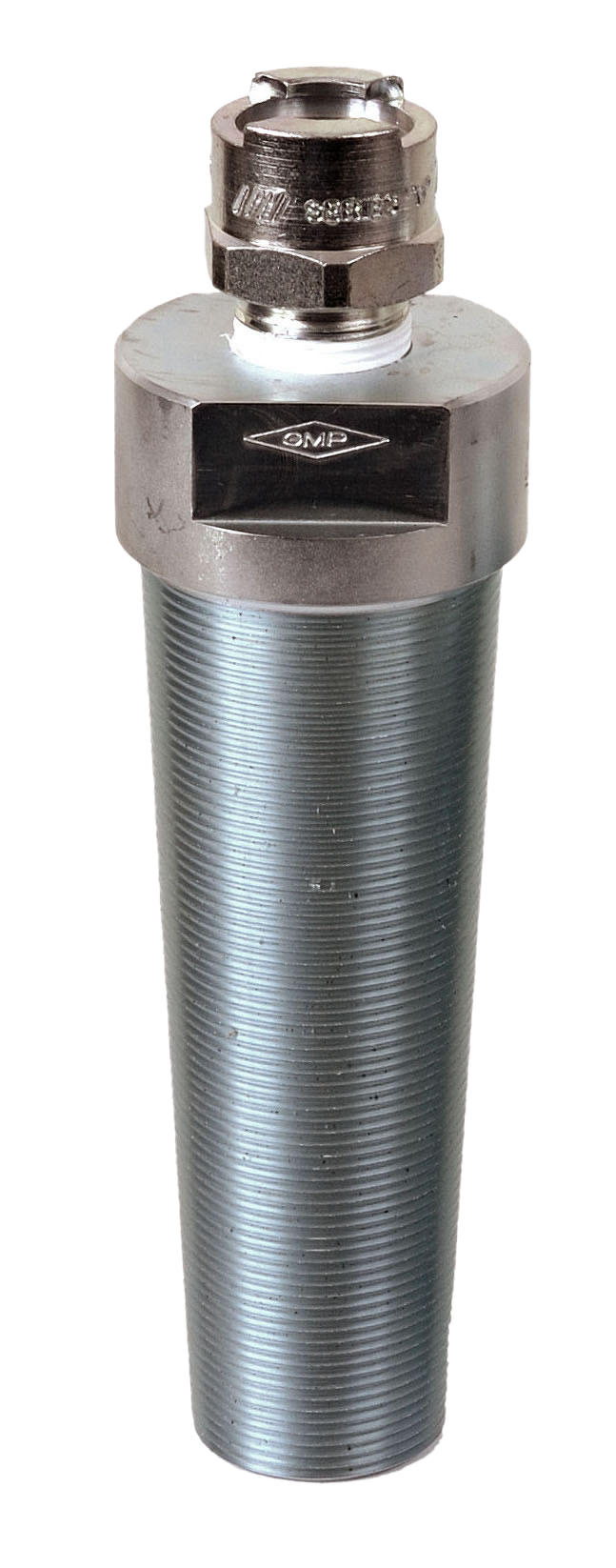

Innerduct Seal-Offs | |
P/N | Description |
89803 | Duct Seal-off 3/4" |
89804 | Duct Seal-off 1" |
89805 | Duct Seal-off 1 1/4" |
89806 | Duct Seal-off 1 1/2" |
89807 | Duct Seal-off 2" |
|
|
Rope Adapters | |
29448 | 3/16” (5mm) |
29446 | 1/4” (6mm) |
29447 | 3/8” (10mm) |
