Pole Trailer Light Bar
Thanks to GMP’s Pole Trailer Light Kits you can transport utility poles with greater visibility while meeting DOT requirements and only adding minimal width to your trailer.
- The frame is made from an extruded aluminum weldment with a durable bright yellow polyester powder coating.

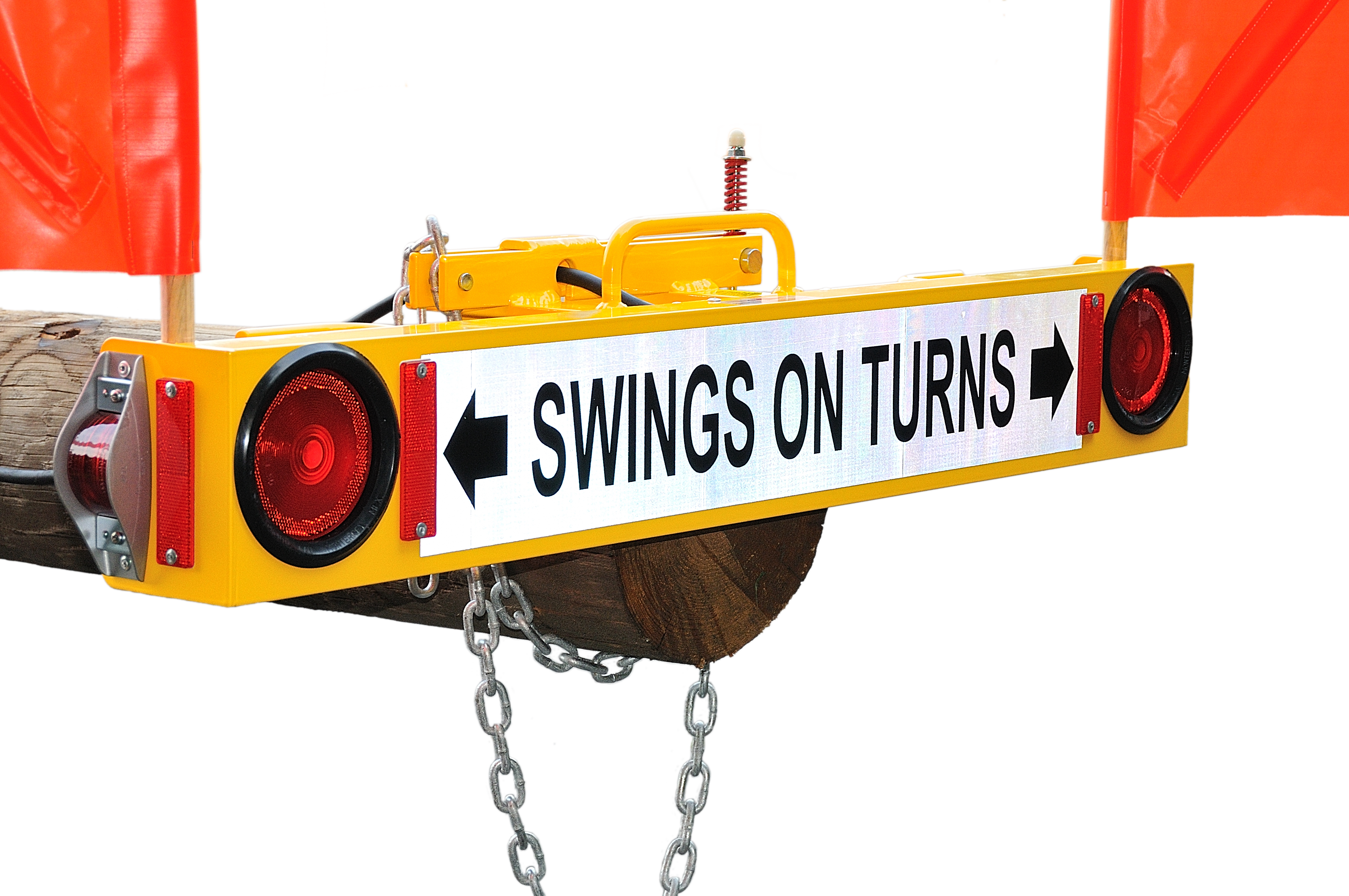

- D.O.T. approved lights (bulb or LED depending on model) and reflectors are mounted on the back and both sides.
- The unit comes with a 40 ft (12.2m) 18 gauge S.O. trailer cord with a heavy-duty 4-way or 6-way trailer lug for plugging into either the trailer or the vehicle pulling the trailer. This gives motorists the added information of turn signals and brake lights; not just blinking lights. Environmental concerns are also reduced as our kits don’t use disposable batteries.

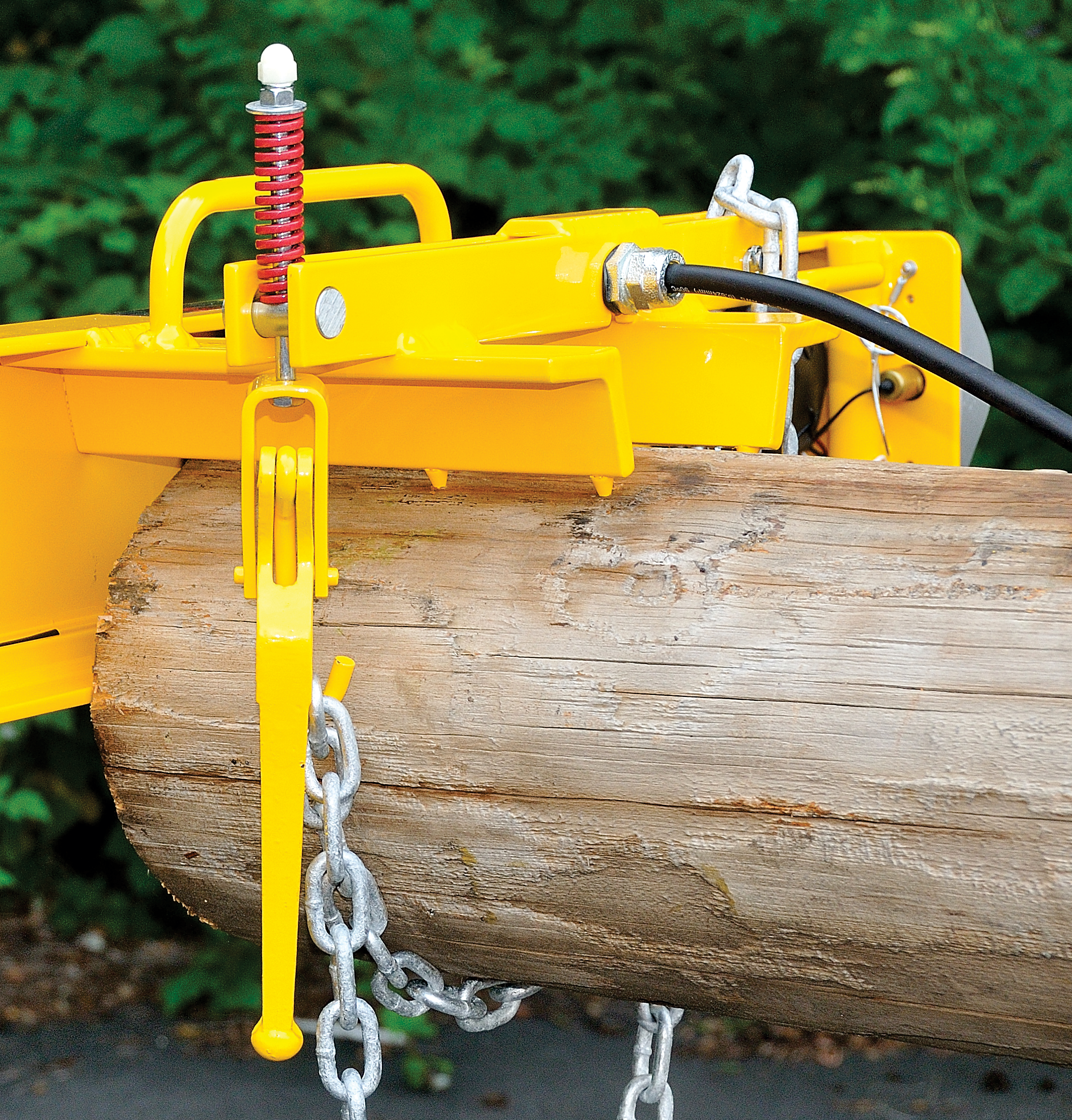

- Positive attachment to the pole is created with an over center chain binder that uses 5 ft (152cm) of chain and hardened steel spikes that bury in the pole when the binder is tightened on the wooden pole only version.

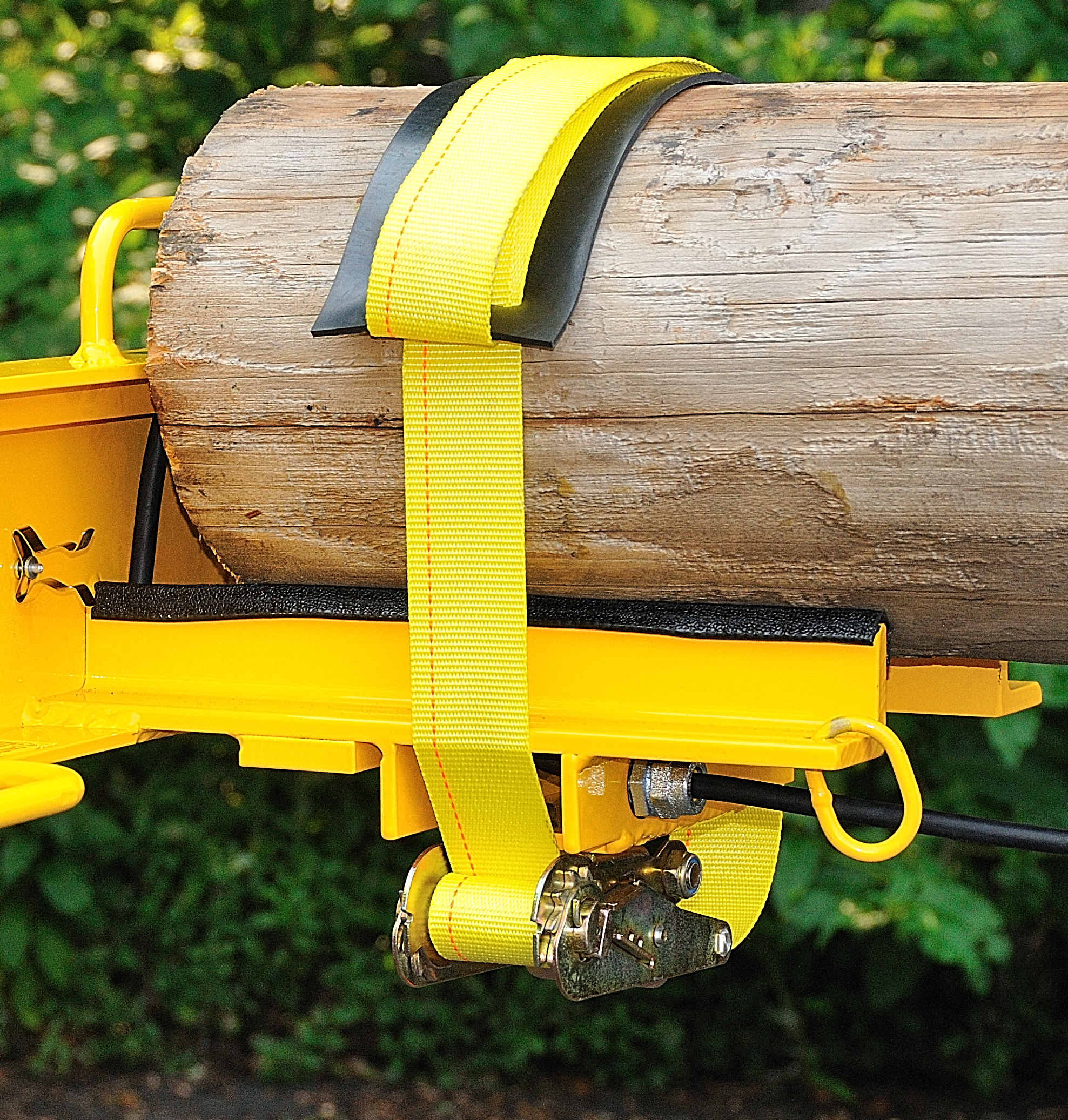

- Heavy duty strap binder version available for attaching to both wood or non-wooden poles.
- Sockets for both the 4-way and 6-way plugs can be ordered separately.
P/N | Description | Weight |
70274 | 46" (117cm) wide w/4-way Plug for wood poles only - top mount | 26 lbs. (12kg) |
70276 | 46" (117cm) wide w/6-way Plug for wood poles only - top mount | 26 lbs. (12kg) |
70277 | 24" (61cm) wide w/4-way Plug for wood poles only - top mount | 14 lbs. (6.5kg) |
70278 | 24" (61cm) wide w/6-way Plug for wood poles only - top mount | 14 lbs. (6.5kg) |
71566 | 46" (117cm) wide w/7-way RV Plug for wood or non-wood poles - bottom mount | 26 lbs. (12kg) |
71567 | 46" (117cm) wide w/4-way Plug for wood or non-wood poles - bottom mount | 26 lbs. (12kg) |
71569 | 46" (117cm) wide w/6-way Plug for wood or non-wood poles - bottom mount | 26 lbs. (12kg) |
71573 | 46" (117cm) wide w/6-way Plug for wood or non-wood poles - top mount | 26 lbs. (12kg) |
71571 | 24" (61cm) wide w/6-way Plug for wood or non-wood poles - top mount | 14 lbs. (6.5kg) |
