Cable Sheaves, Shackles and Quad Blocks

Cable Sheaves, Shackles and Quad Blocks

71726, 71729, 71725, 71728, 71721, 71724, 71643, 71644, 71645, 71716, 71717, 84453, 84454, 84455

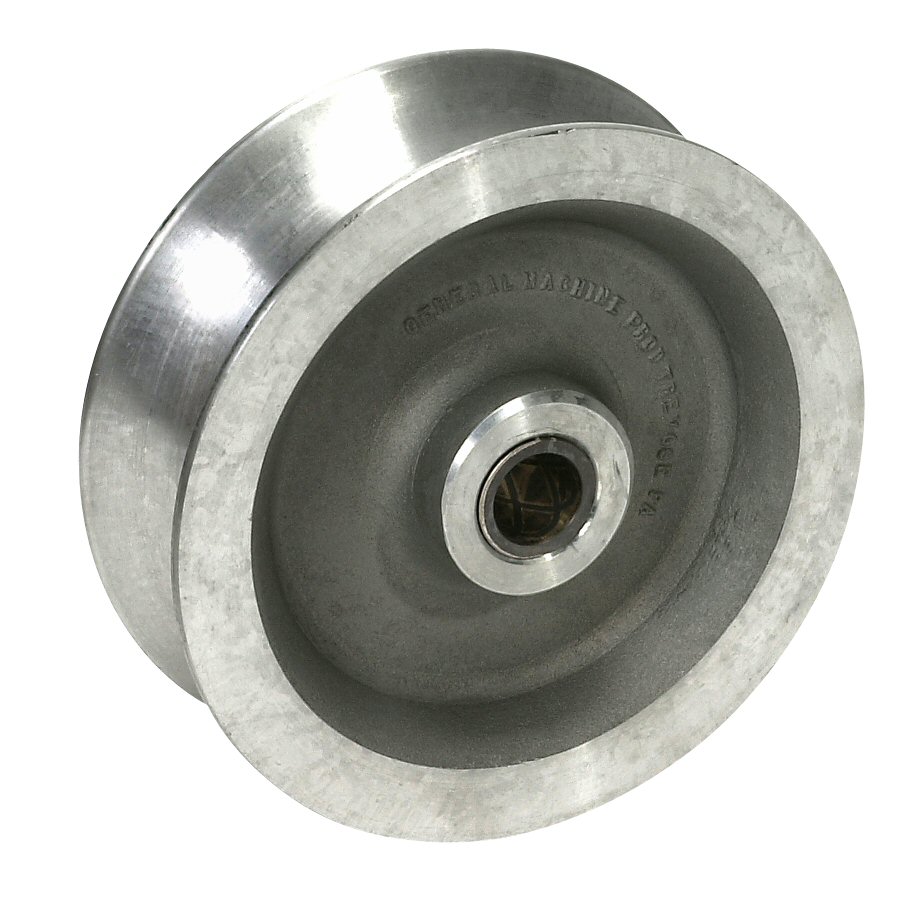

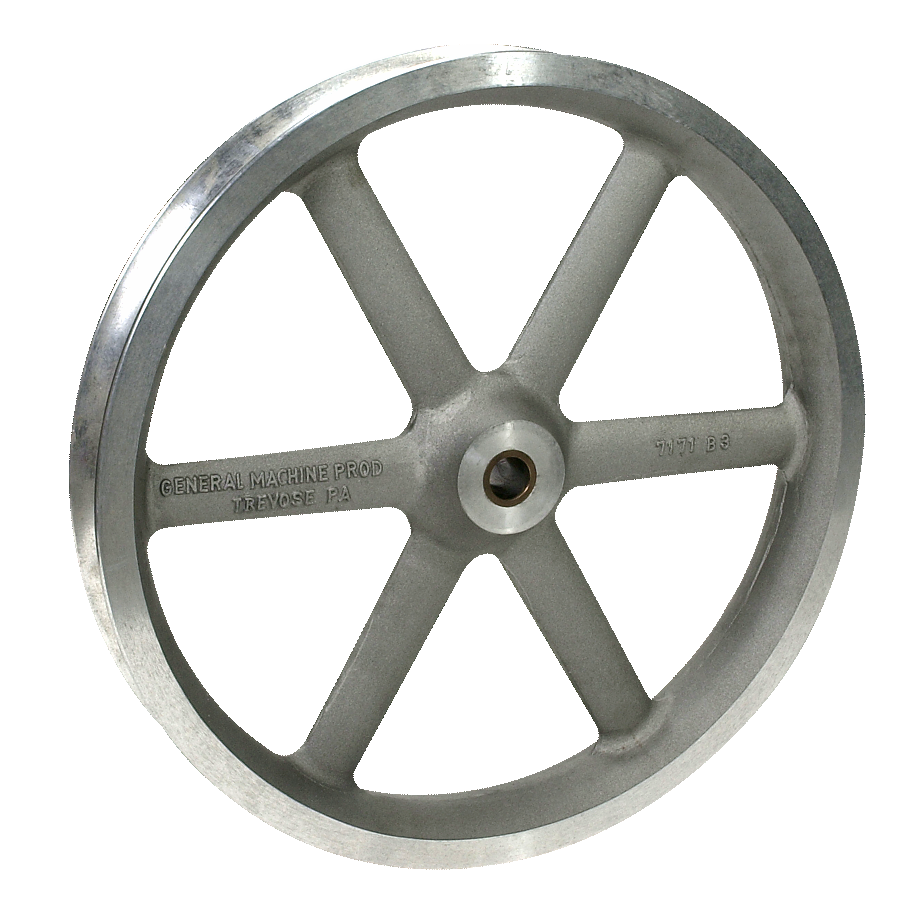

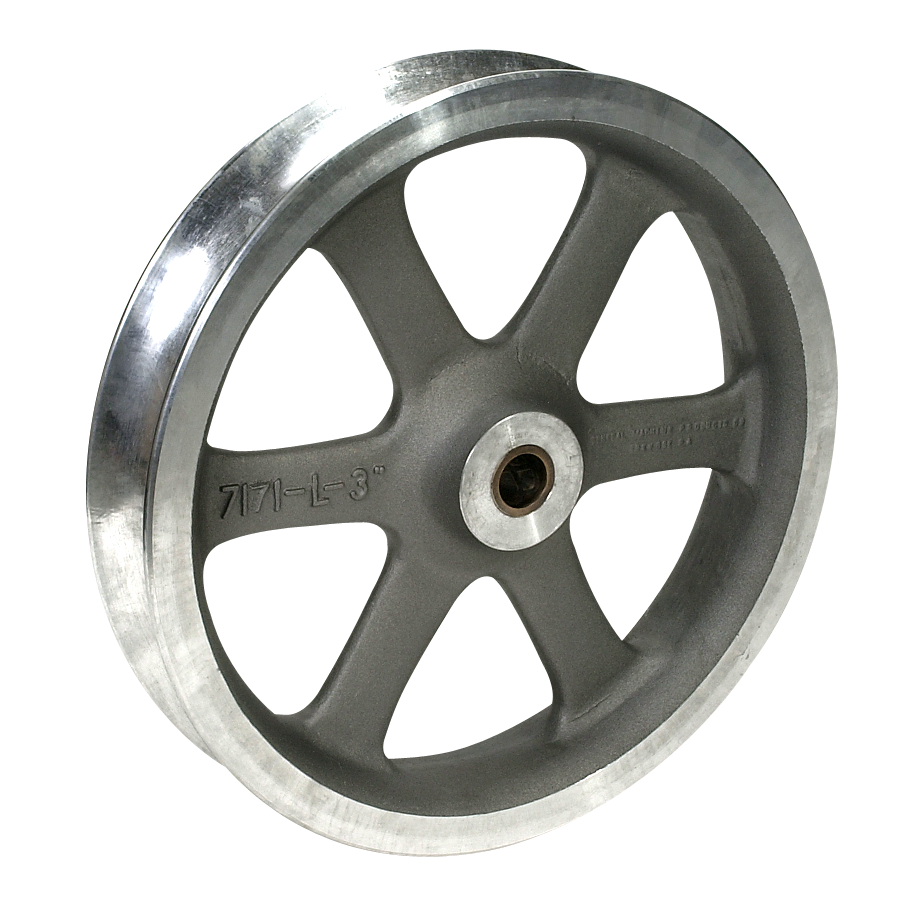

Cable Sheaves are used in placing and removing underground cables.
  • Constructed from high-strength aluminum alloy, they have self-lubricating bushings for long, maintenance-free lives
  • These units are available in 11 in (280mm), 20 in. (510 mm) and 26 1/2 in. (675mm) dia., and are used with 3 in ( 80mm), 4 in. (102mm) and 5 in. (130mm) cables.

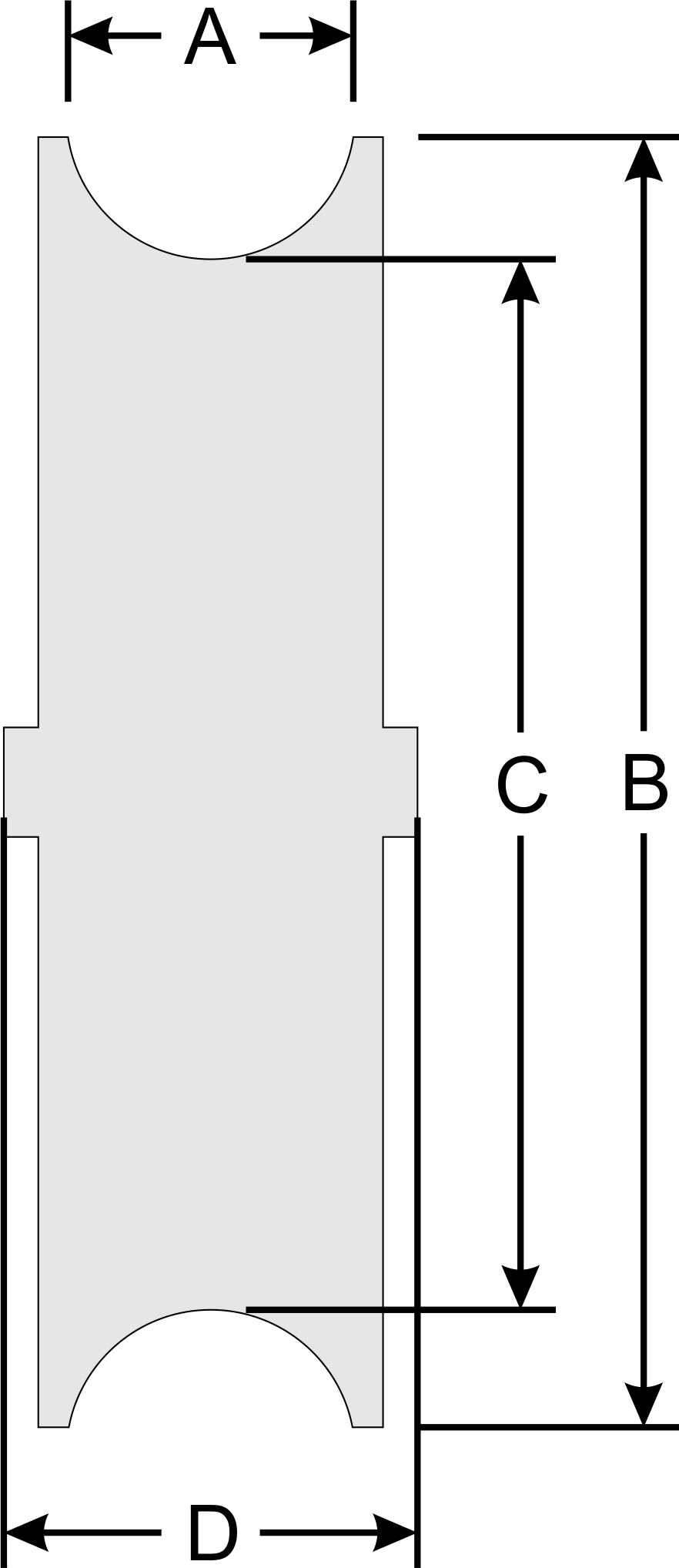

  • They are used with the GMP cable sheave shackle or jam skid. The pin is supplied with the cable sheave shackle or jam skid.Cable sheave dims

P/N

A

B

C

D

Weight

71726

4 in. (10cm)

11 in. (28cm)

7 7/8 in. (20cm)

4 1/2 in. (11.5cm)

20 lbs. (9kg)

71729

5 in. (13cm)

11 in. (28cm)

6 7/8 in. (17cm)

5 1/2 in. (14cm)

25 lbs. (11kg)

71725

4 in. (10cm)

20 in. (51cm)

16 in. (41cm)

4 1/2 in. (11.5cm)

36 lbs. (16kg)

71728

5 in. (13cm)

20 in. (51cm)

16 1/2 in. (42cm)

5 1/2 in. (14cm)

40 lbs. (18kg)

71721

3 in. (8cm)

26 1/2 in. (67cm)

24 in. (61cm)

3 1/2 in. (9cm)

38 lbs. (17kg)

71724

4 in. (10cm)

26 1/2 in. (67cm)

22 1/2 in. (57cm)

4 1/2 in. (11.5cm)

44 lbs. (19kg)

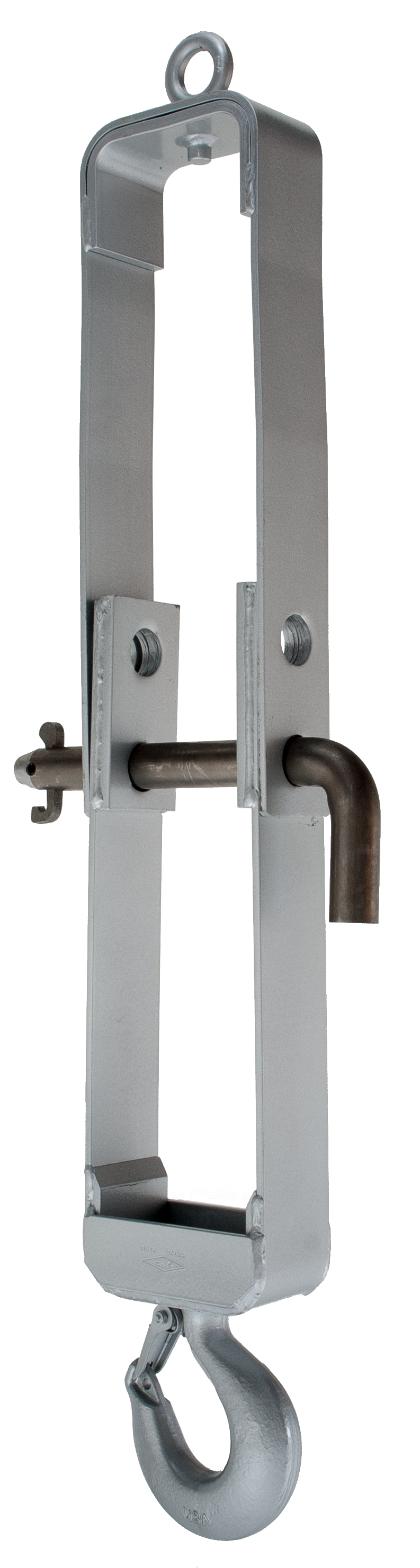

CABLE SHEAVE SHACKLE

Used for supporting a cable sheave or quadrant block in place at a manhole equipped with pulling-in irons.

  • Contains a two-part clevis made of high-strength structural steel, with two sets of sheave pin holes 1 3/8 in. (35mm) dia. for accommodating either a cable sheave or quadrant block
  • The load half has a forged steel hook that attaches to the pulling-in irons with a standard 1/2 in. (12mm) x 6 ft. ( 1.8 m) construction chain, while the support half has a shoulder eyebolt so you can tie it off to a support rope over the manhole
  • Will accommodate any 11 in., 20 in. or 26 1/2 in. cable sheave with a 1 3/8 in. hole size for  4 in. or 5 in. cable
  • Each shackle includes a 1 5/16 in. dia. sheave pin and can withstand working loads up to 10,000 lbs (4535kg)
  • Now included Safety Latch as required by OSHA

 Select the right GMP Sheave or Quadrant Block to accommodate your cable pulling needs, then choose a shackle from the table below to match the size

P/N

Cable Sheave Size

Weight

71643

3 in. (76mm)

32 lbs. (14kg)

71644

4 in. (102mm)

45 lbs. (20kg)

71645

5 in. (127mm)

47 lbs. (21kg)

71716

Replacement Pin 1 5/16 X 4"

5 lbs. (2.2kg)

71717

Replacement Pin 1 5/16 X 5 "

6 lbs. (2.7kg)

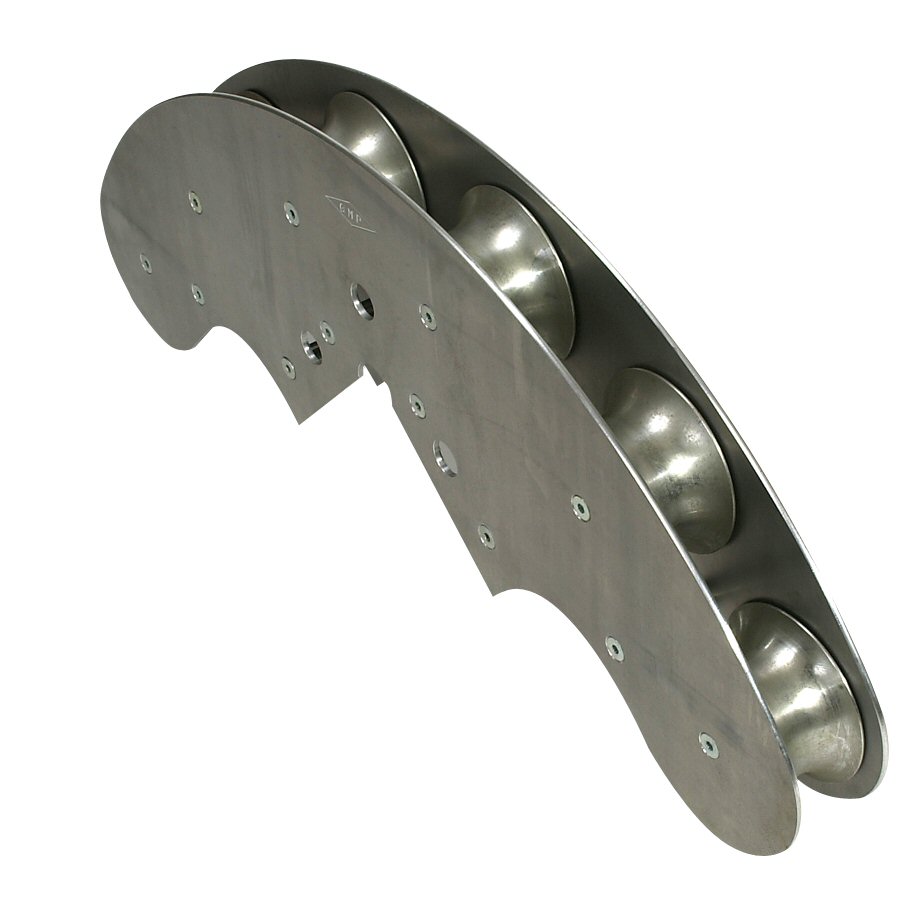

QUADRANT BLOCKS

Used to guide the pulling line or cable during underground cable placement or removal

  • Consists of six cast aluminum sheaves supported in an aluminum frame to provide a bending radius of 24 in. (609mm)
  • Each sheave has self-lubricating bushings for smooth movement and a long, maintenance-free life
  • Available to accommodate 3 in. (84453), 4 in. (84454) or 5 in. (84455) cable diameters
  • Each side plate has holes to insert a 1 1/4 in. (32mm) digging bar to prevent the block from being knocked into the manhole
  • It can also be used with a cable sheave shaker, pulling frame, or jamb skid to suspend in the manhole as an alternative method.

P/N

Maximum Cable Size

Weight

84453

3 in. (76mm)

60 lbs (27kg)

84454

4 in. (102mm)

75 lbs (34kg)

84455

5 in. (127mm)

90 lbs (40kg)

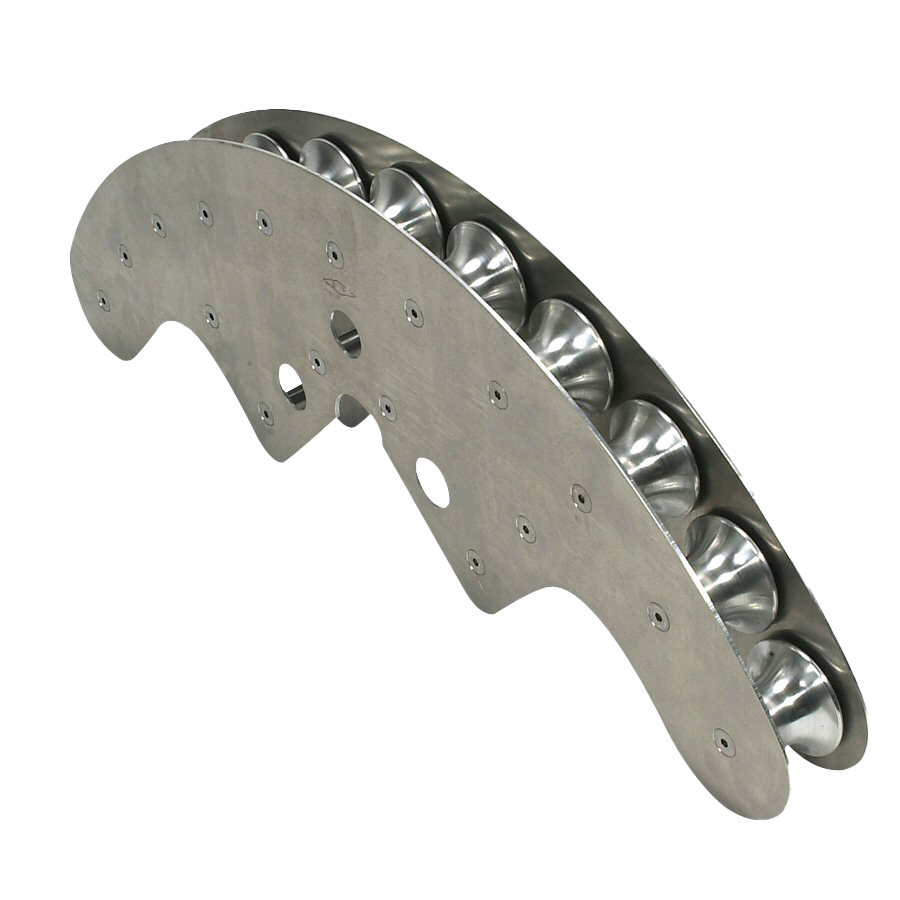

FIBER OPTIC QUADRANT BLOCK


The Fiber Optic Quadrant Block provides a smoother and safer cable placement in manhole vaults with a minimum of set up time.

  • Eleven machined aluminum sheaves provide better cable support than all other conventional blocks
  • Its corrosion resistant aluminum and stainless steel construction provides a smooth, non chafing cable placement surface
  • Quadrant can be used either inside the vault or on edge of the manhole
  • This unit has an 18 in. (457mm) bending radius and is compatible with all fiber optic cables up to 7/8 in. (22mm) diameter
  • The Fiber Optic Quadrant, when used in the manhole, is mounted with a GMP Fiber Optic Shackle (P/N 70045) or a Pulling Frame

P/N 15316   Fiber Optic Quadrant Block   Weight: 18 lbs. 8 oz. (8kgs)
