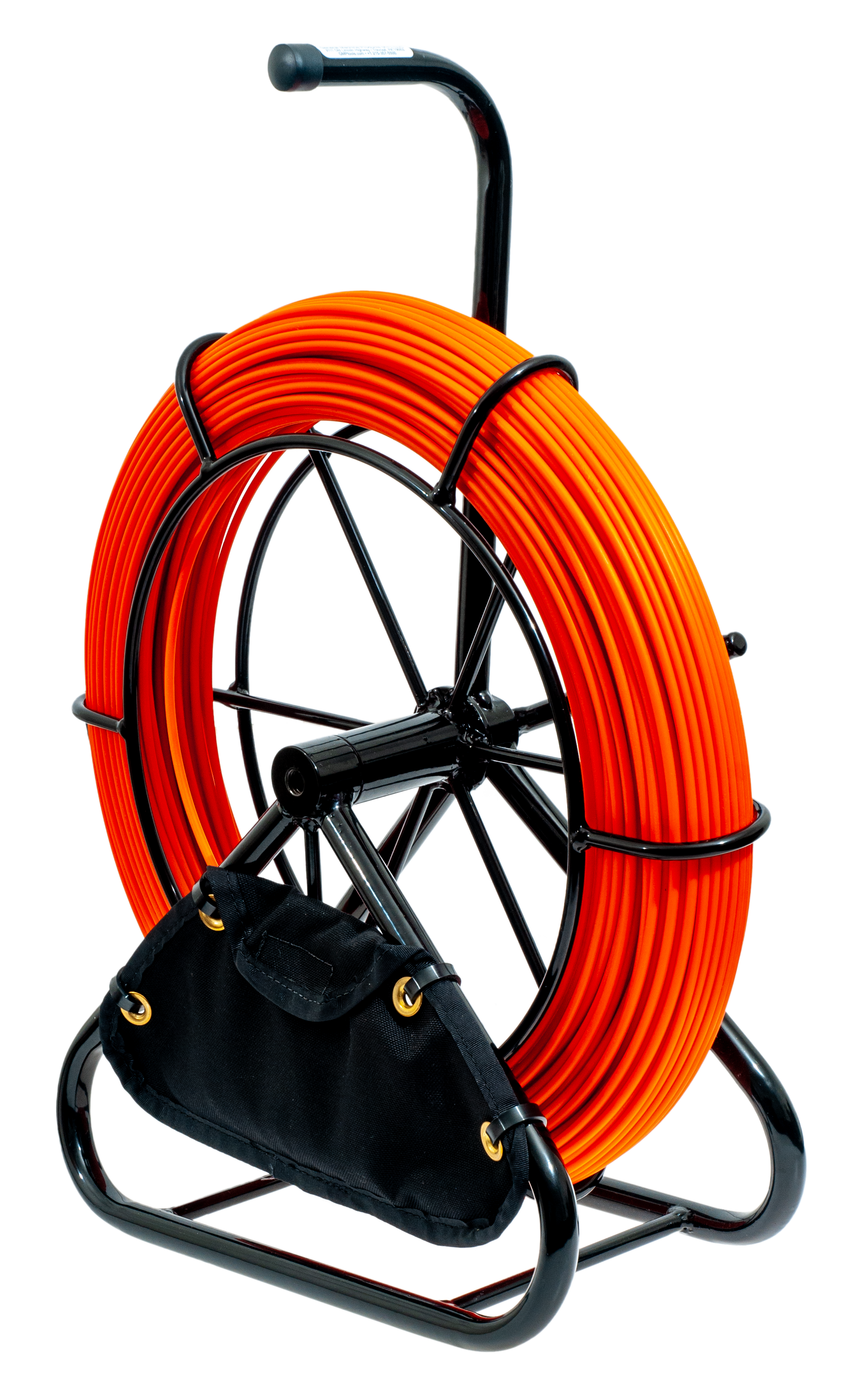

3/16 INCH CONTINUOUS DUCT RODDERS
Ideal for running conduit both inside and outside drops, as well as home drops from hand-hole boxes to buildings. Its design supports pulling duct.

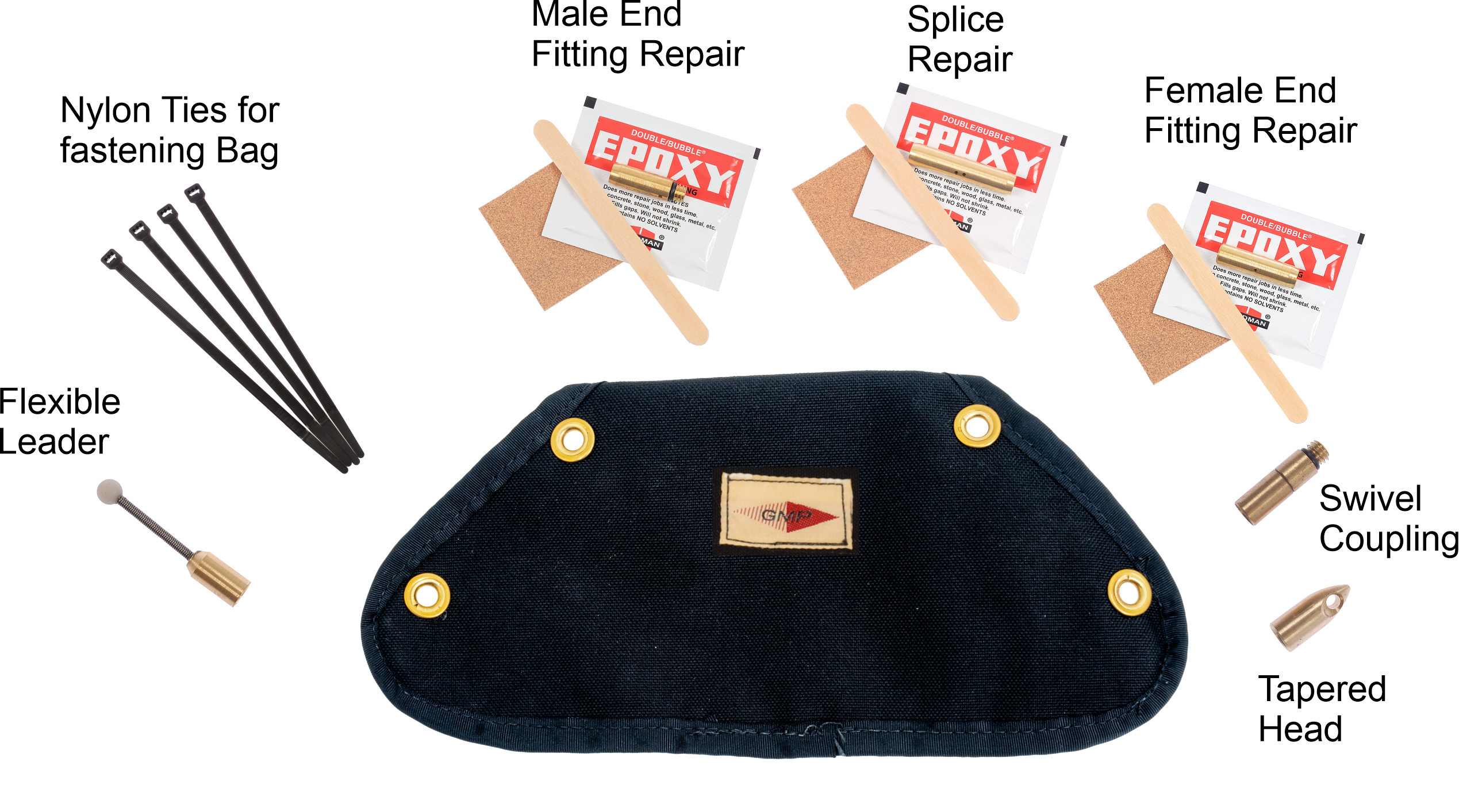

The included accessory kit has a flexible leader, replacement ends, swivel coupling, tapered head and a carrying pouch, enhancing its versatility and convenience.
- Non-Conductive Material: Rod is constructed of a fiberglass composite with a polypropylene outer layer that provides water, oil, and chemical resistance.
- High Pull Strength: Loads up to 350 lbs. (159kg)
- Dimensions: 16 in. x 8 in. x 21 in. (413mm x 203mm x 537mm)
- 35% Lighter than the leading competition
- Powder coated tubular steel frame with integrated brake
- Rod carrier runs on 2 heavy duty ball bearings for smooth operation
| P/N | 3/16 in. (4.5MM) Duct Rodders | Weight |
| 89280 | 3/16" X 100' | 8.3 lbs. (3.8kg) |
| 89281 | 3/16" X 150' | 9.0 lbs. (4kg) |
| 89282 | 3/16" X 200' | 9.8 lbs. (4.4kg) |
| 89283 | 3/16" X 300' | 11.3 lbs. (5.1kg) |
| Rod Specifications | ||||
| Nominal Size | End Fitting Threads | Rated Tensile Strength | Rated Pull Strength | Minimum Bend Diameter |
| 3/16 in. (4.5mm) | 1/4 x 20 | 1400 lbs.-f (6.2kN) | 350 lbs.-f (1.6kN) | 5.3 in. (135mm) |
| Rodder Carrier Dimensions | ||||
| Nominal Size | Cassette Dia. in. (mm) | Length in. (mm) | Width in. (mm) | Height in. (mm) |
| 3/16 in. (4.5mm) | 16 .25 (413) | 16.25 (413) | 8 (203) | 21.13 (537) |
| P/N | Repair Kits |
| 89346 | Repair Fitting Male 3/16” |
| 89347 | Repair Splice 3/16” |
| 89348 | Repair Fitting Female 3/16” |
| P/N | Replacement Accessories |
| 89344 | Flexible Leader |
| 89345 | Swivel Coupling |
| 89349 | Tapered Head |
