REELRUNNER

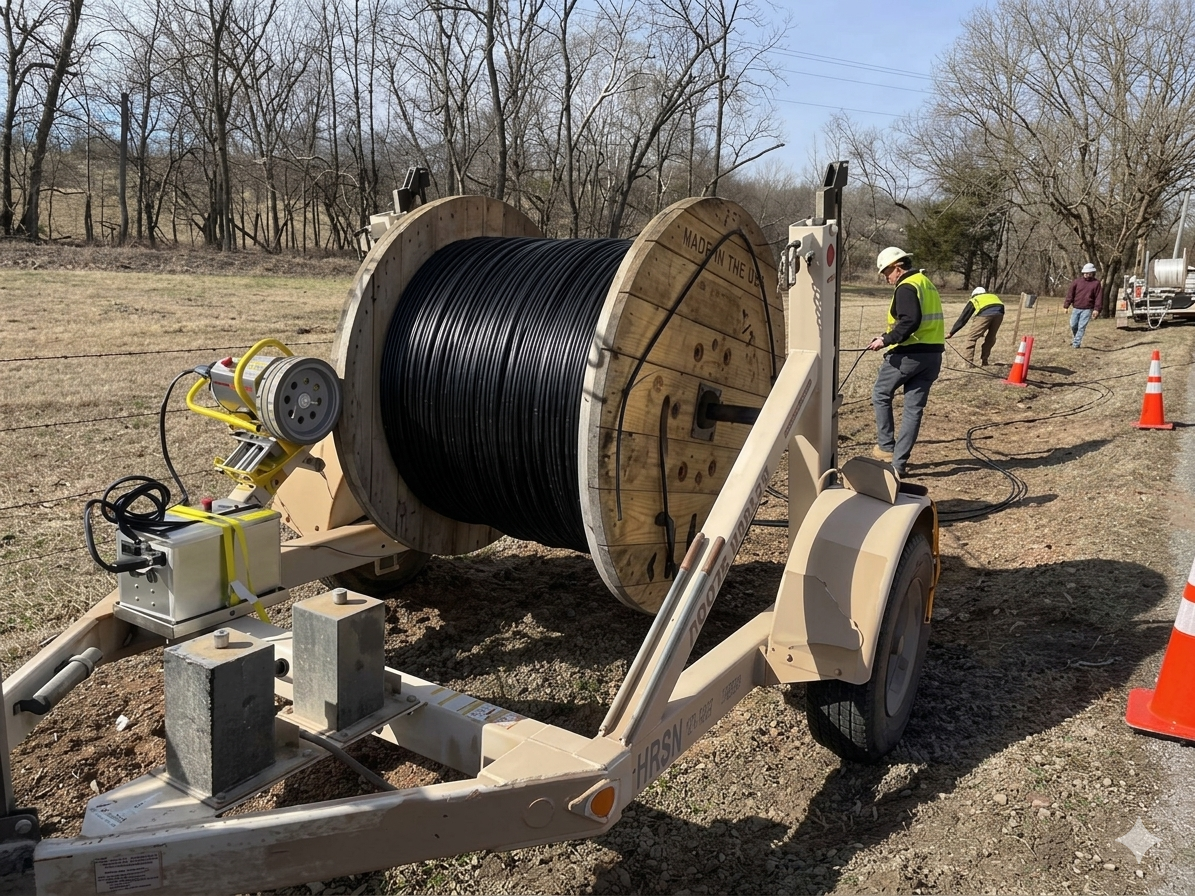

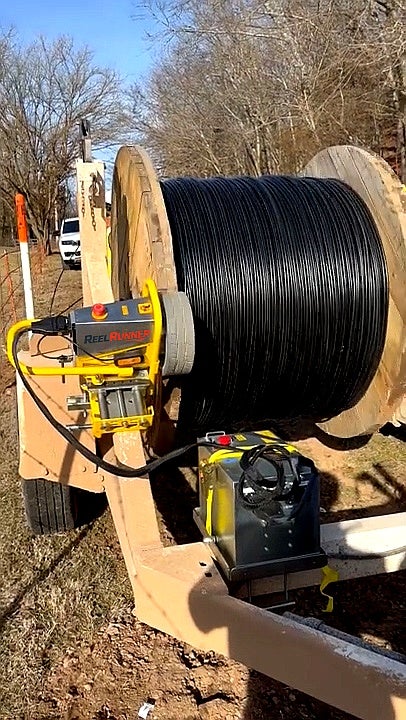

ReelRunner™ is a powerful, cost-effective solution that instantly transforms virtually any standard non-powered cable reel trailer into a high-efficiency powered reel system—eliminating the need for expensive hydraulic cable reel trailers.
Move Cable Faster. Work Smarter
• Save thousands per month in labor costs
• Same crew-more output-less fatigue
• One unit shared across multiple trailers
- Attaches to virtually any non-powered cable trailer
- 12" horizontal travel
- Dual-side mounting
- Force indicator ensures optimal traction
- Durable airless wheel – no flats, no downtime
- 48V / 40Ah battery system for full-day runtime

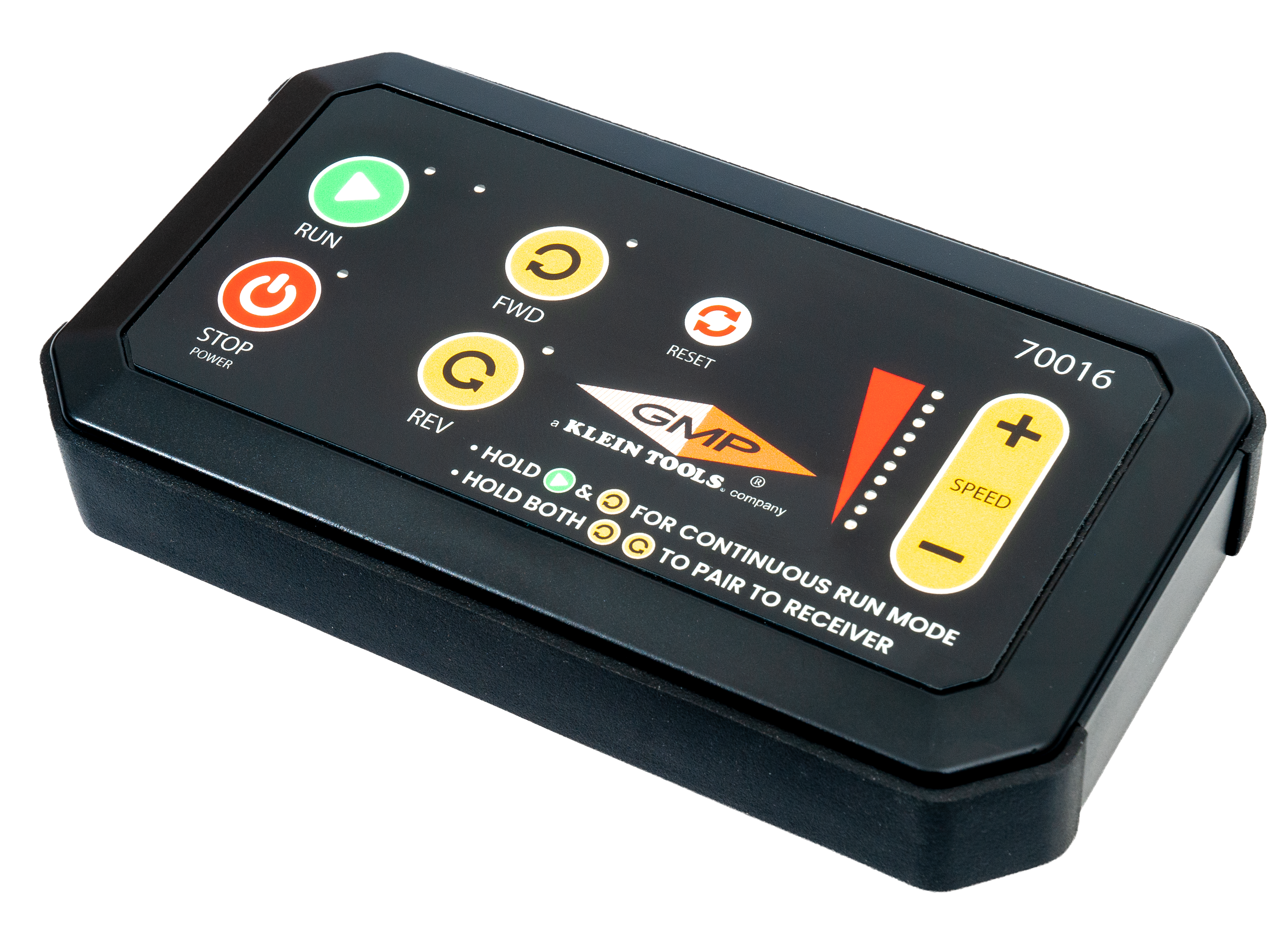

- Wireless remote for safer operation
- Quiet Operation
P/N 50000 ReelRunner Weight: 100 lbs.
Drive System Type: Battery-powered reel drive system
Primary Application: Cable payout from non-powered reel trailers
Secondary Application: Spooling loose cable back onto reel
Battery Type: LiFePO4
Battery Size: 48V, 40Ah
Charge Time: Approximately 5 hours with 8A charger
Maximum Wheel Speed: Up to 125 RPM with 12 in drive wheel
Approximate Traction Force: 125 lbs
Trailer Compatibility: Structural tubing from 2 in x 2 in to 2 in x 6 in; angle iron members may be adapted with blocking
Reel Diameter Capacity: Up to 8 ft diameter
Reel Construction: Suitable for steel or wood flanged reels
Reel Weight Capacity: Capable of driving reels weighing several thousand pounds depending on reel diameter, load distribution, shaft condition, and related field conditions
Motor Assembly Position Range: 3 in to 12 in from inside edge of trailer frame
Operating Noise: Nearly silent operation
Runtime: Application dependent; field use has demonstrated full-day operation on a single charge in many installations

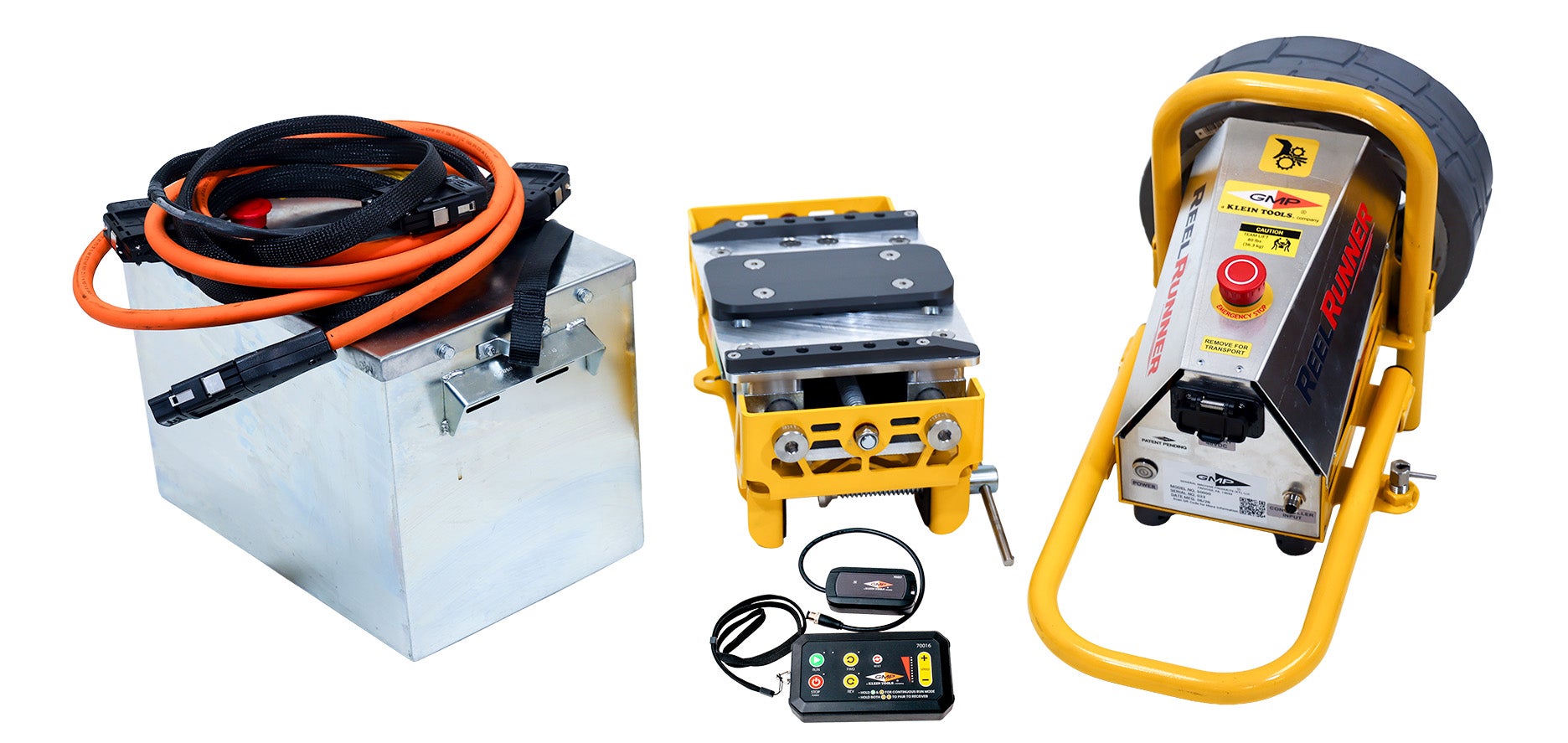

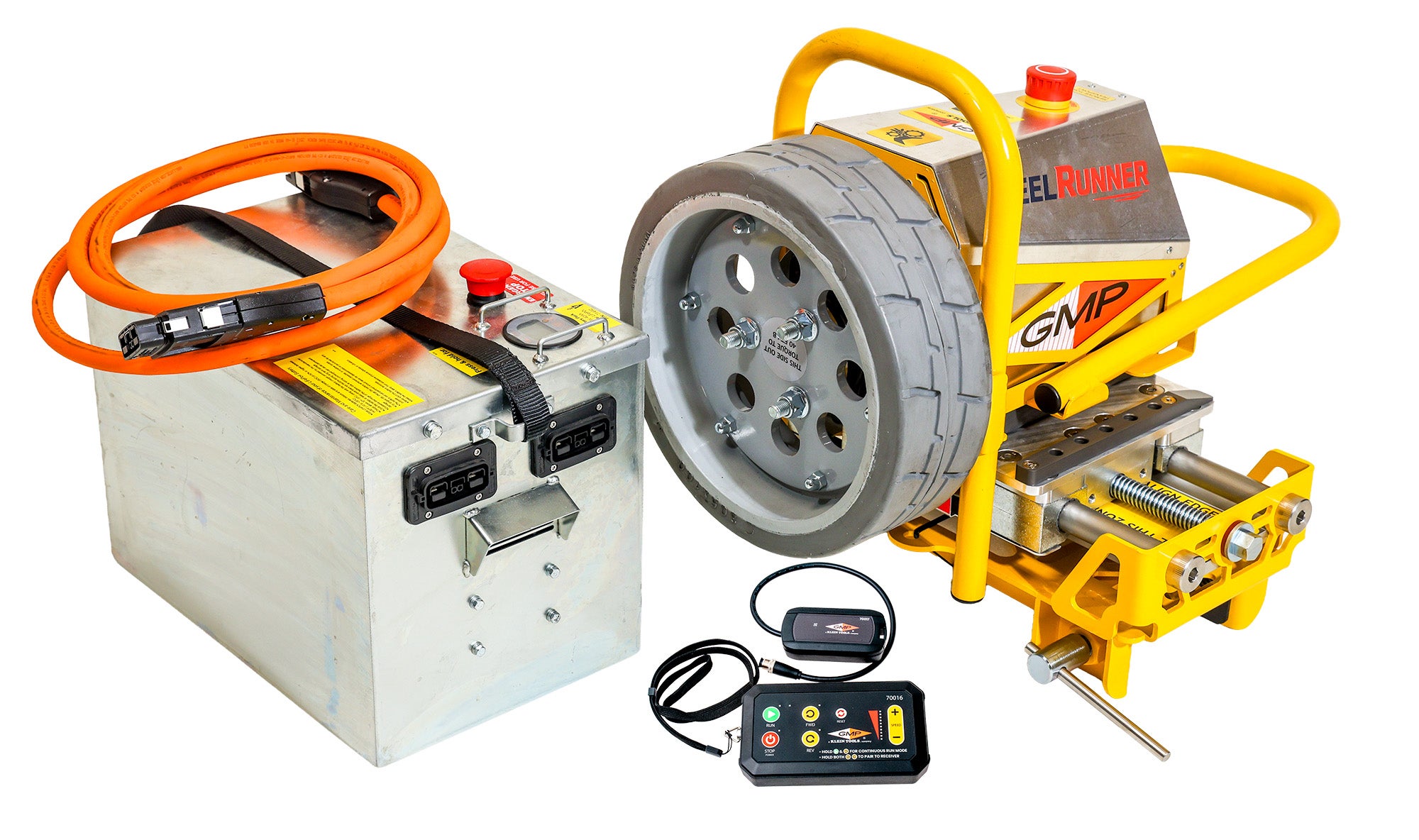

Kit P/N 50000 Includes: Motor assy, Clamping base assy, wireless controller, battery and charger, attachment hardware and power cord
REPLACEMENT PARTS & ACCESSORIES:
Motor Assy w/ wireless controller: 01409
Base Assy w/ clamp: 01411
Battery Bracket Kit: 50001
Battery w/ charger: 71492
Battery power cable: 71494
Wireless Controller kit: 70023
Replacement drive wheel: 01389
Trigger controller: 71493
Complete Kit Includes (P/N 50000)
Motor Assembly: 01409
Includes:
Motor and Drive Wheel
Wireless Controller (70016) and Receiver (70017)
Power Cable (71494)
Base Assembly: 01411
Includes Base and Mounting Hardware
Battery: 71492
Includes Charger (71495)
Optional Accessories
Battery Mount P/N 50001
Replacement Wheel P/N 01389
Speed Control Foot Pedal P/N 71800
Speed Control Trigger P/N 71493
Battery Charger High Speed, 48V 15A P/N 71496
