OPGW POCKETBOOK GRIPS
The NEW self closing Pocketbook grips from General Machine Products. For use with tensioning OPGW and other aerial conductors

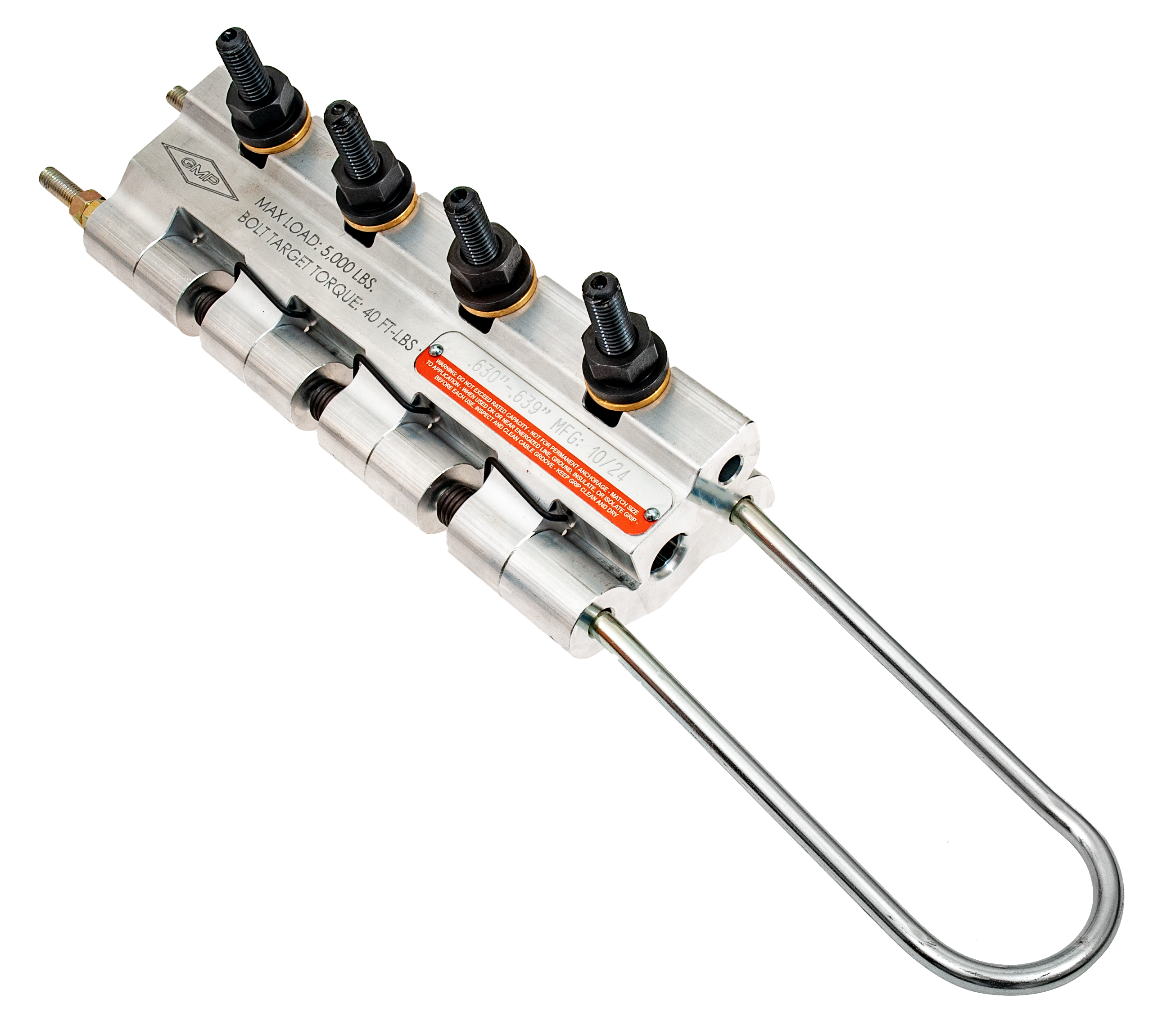

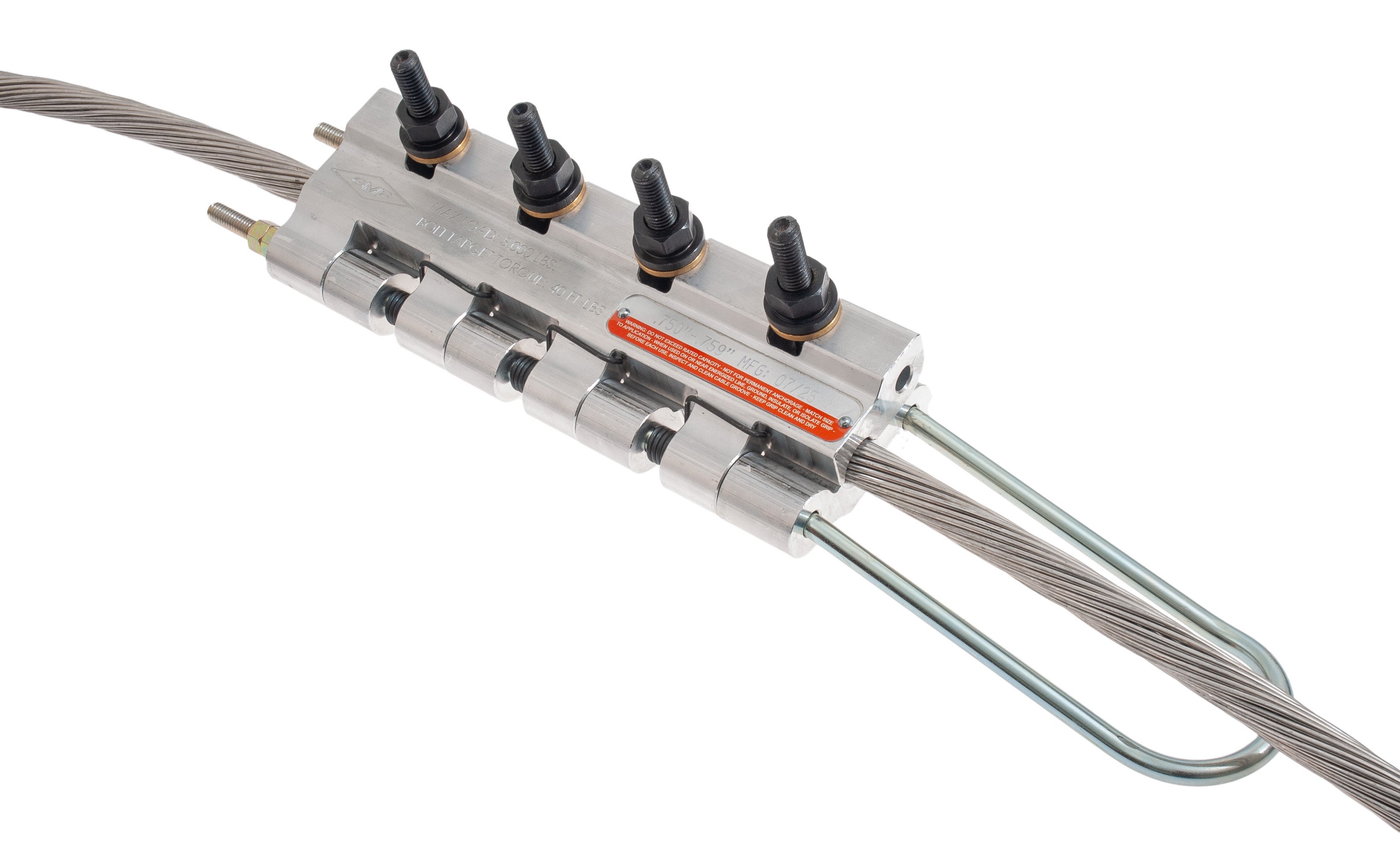

The NEW lightweight come-along pocketbook grips from General Machine Products are designed to combine durability with ease of use. Made from high-strength 6061 aluminum, combined with competitors' products being up to 40% heavier, GMP grips help reduce fatigue during handling and setup. Their patent-pending self-closing design allows for effortless one-handed installation, users can simply snap the grip onto the line and tighten it, eliminating the hassle associated with traditional grips. These features set a new benchmark for efficiency and convenience in the industry.
- Weight reduction- completive products are up to 40% heavier!

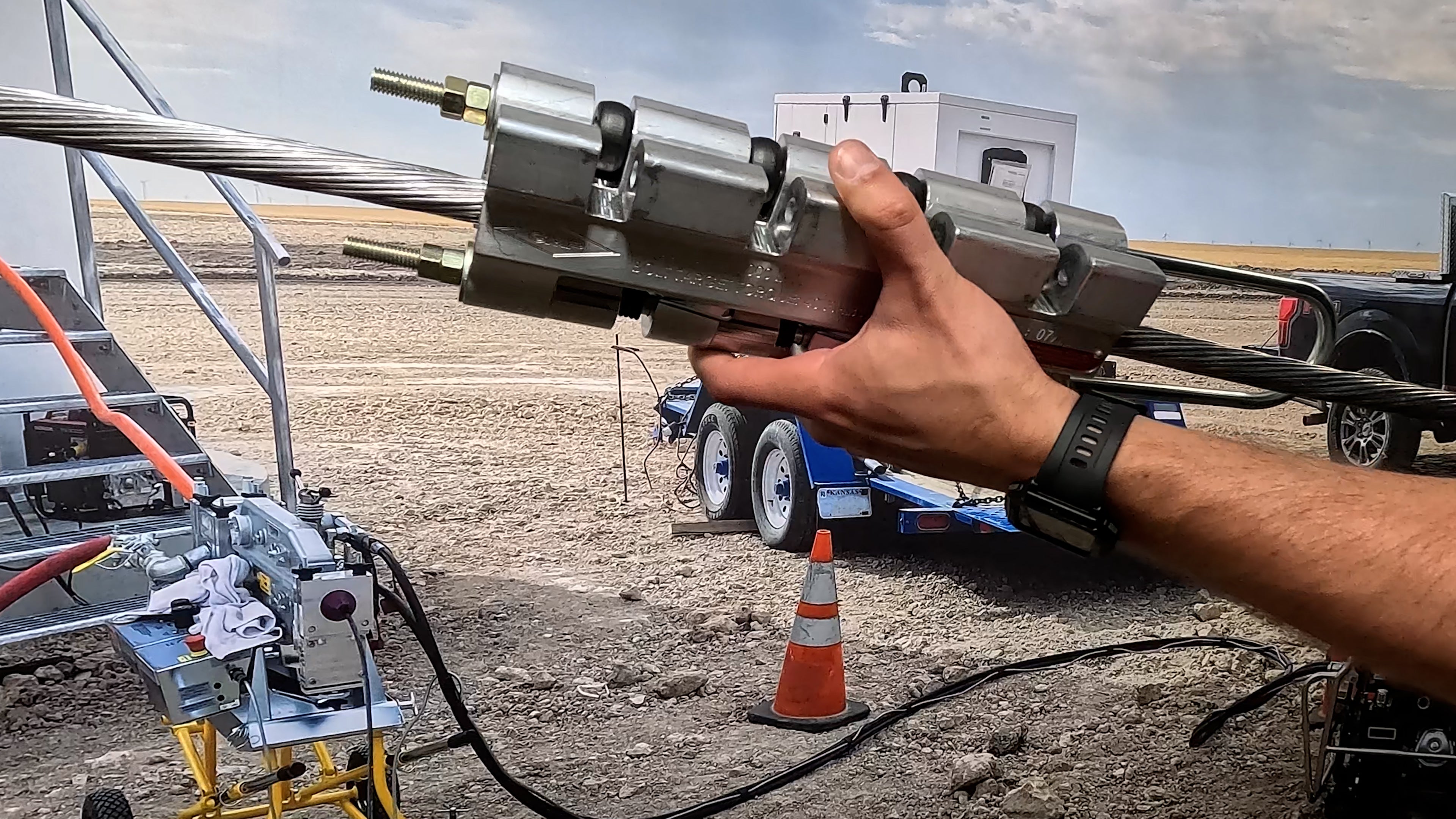

- 1 hand installation
- Innovative self closing hinge
- High precision design prevents crushing or damaging fiber
Part Number | Conductor Diameter Range |
| Part Number | Conductor Diameter Range |
76000-380389 | .380-.389 | 76000-620629 | .620-.629 | |
76000-390399 | .390-.399 | 76000-630639 | .630-.639 | |
76000-400409 | .400-.409 | 76000-640649 | .640-.649 | |
76000-410419 | .410-.419 | 76000-650659 | .650-.659 | |
76000-420429 | .420-.429 | 76000-660669 | .660-.669 | |
76000-430439 | .430-.439 | 76000-670679 | .670-.679 | |
76000-440449 | .440-.449 | 76000-680689 | .680-.689 | |
76000-450459 | .450-.459 | 76000-690699 | .690-.699 | |
76000-460469 | .460-.469 | 76000-700709 | .700-.709 | |
76000-470479 | .470-.479 | 76000-710719 | .710-.719 | |
76000-480489 | .480-.489 | 76000-720729 | .720-.729 | |
76000-490499 | .490-.499 | 76000-730739 | .730-.739 | |
76000-500509 | .500-.509 | 76000-740749 | .740-.749 | |
76000-510519 | .510-.519 | 76000-750759 | .750-.759 | |
76000-520529 | .520-.529 | 76000-760769 | .760-.769 | |
76000-530539 | .530-.539 | 76000-770779 | .770-.779 | |
76000-540549 | .540-.549 | 76000-780789 | .780-.789 | |
76000-550559 | .550-.559 | 76000-790799 | .790-.799 | |
76000-560569 | .560-.569 | 76000-800809 | .800-.809 | |
76000-570579 | .570-.579 | 76000-810819 | .810-.819 | |
76000-580589 | .580-.589 | 76000-820829 | .820-.829 | |
76000-590599 | .590-.599 | 76000-830839 | .830-.839 | |
76000-600609 | .600-.609 | 76000-840849 | .840-.849 | |
76000-610619 | .610-.619 | 76000-850859 | .850-.859 |
Weight: 7.5 lbs (3.4kg)
Dim: L: 20 in. W: 3.5 in. H: 5 in.
Max tension limit: 5,000 lbs or 50% of rated strength of conductor, whichever is smaller.
Sizes: .380-.859 inch dia.
Bolt size: 1/2 inch steel
Bale: 3/8 inch steel
Final Torque: 40 ft-lb
Body: High strength 6061 aluminum
