BALL BEARING SWIVELS
These tough swivels are designed to handle higher thrust loads for extra cable safety and faster straight pulls.
CAUTION: To be used for underground cable installation only. These swivels are Not Designed for Directional Drilling applications. They are designed for pulling cable or rope. Do not allow these swivels to be pulled around a bullwheel or capstan. Damage to the swivel and/or wheel may occur.
- Precision-machined body is made of high quality stainless steel with higher working load ratings than comparably sized swivels available on the market
- These heavy-duty swivels are built with a thrust bearing for tensile load and a radial bearing for bending load
- Working Load Limit for under ground applications is based on a horizonal pull of 3:1 while aerial applications have a WLL of 5:1
- Replacement pins available
P/N | Pin Type | Working Load Limit Under Ground | Working Load Limit Aerial | Eye Width |

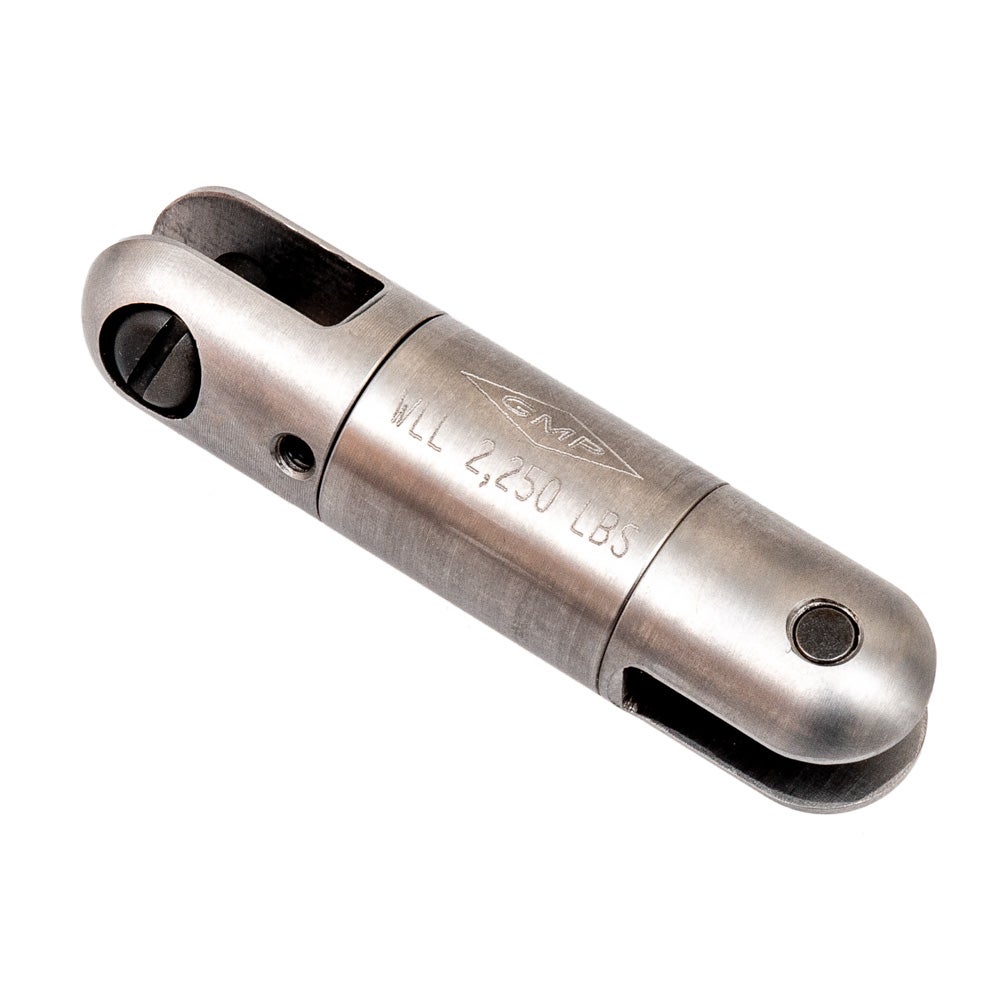

70136 | Slot | 2,250 lbs. (10.0kN) | 1350 lbs. (6.0kN) | 3/8 in. (9.5mm) |
71136 | Hex | |||

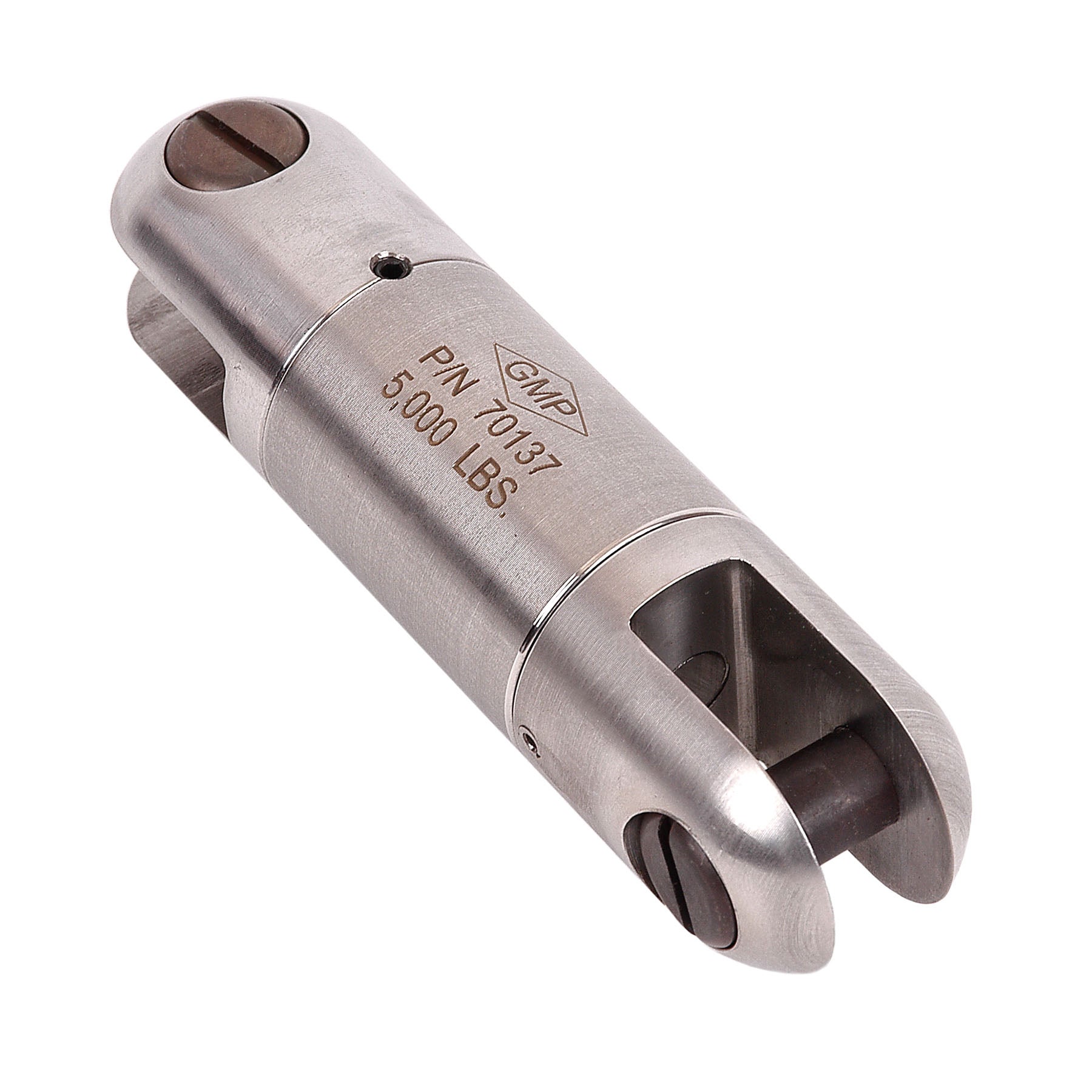

70137 | Slot | 5,000 lbs. (22.2kN) | 3000 lbs. (13.3kN) | 17/32 in (13.5mm) |
71137 | Hex | |||

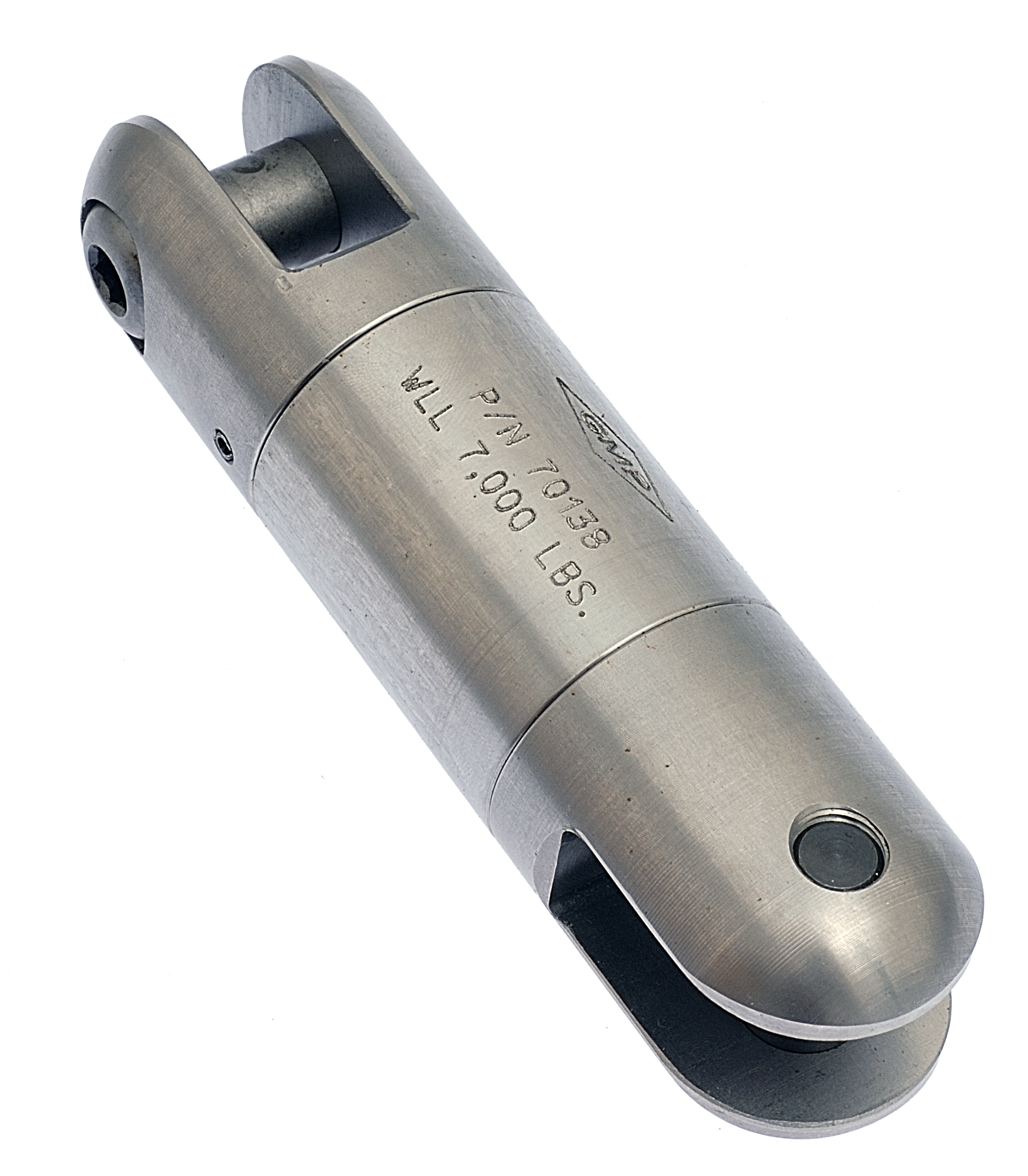

70138 | Hex | 7,000 lbs. (31.1kN) | 4200 lbs. (18.7kN) | 9/16 in. (14.3mm) |
71138 | Slot | |||
70139 | Hex | 10,000 lbs. (44.5kN) | 6000 lbs. (26.7kN) | 11/16 in. (17.5mm) |

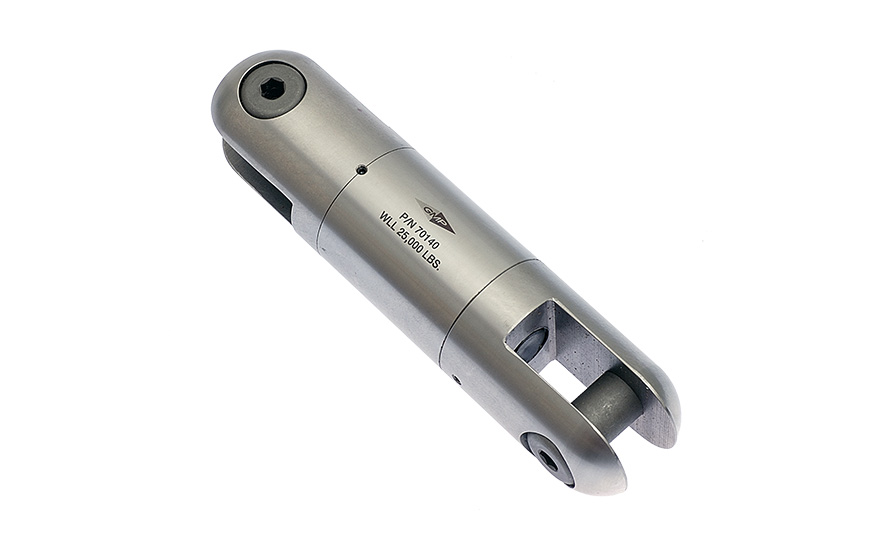

70140 | Hex | 25,000 lbs. (111.2kN) | 15000 lbs. (66.7kN) | 1-1/32 in. (26mm) |
Swivel P/N | Replacement Pin | Replacement Pin 3 Pack |
70136 | Slot - P/N 28039 | Slot - P/N 32903 |
71136 | Hex - P/N 33155 | N.A. |
70137 | Slot - P/N 28048 | Slot - P/N 32931 |
71137 | Hex - P/N 33156 | N.A. |
70138 | Hex - P/N 28058 | Slot - P/N 32932 |
71138 | Slot - P/N 34077 | N.A. |
70139 | Hex - P/N 28067 | Hex - P/N 32933 |
70140 | Hex - P/N 28908 | Hex - P/N 32934 |

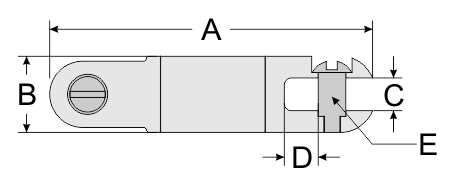

SWIVEL DIMENSIONS
| P/N | A | B | C | D | E (Pin Dia.) |
|---|---|---|---|---|---|
| 70136 71136 | 3.39 in. (86.1mm) | .86 in. (22.3mm) | .37 in. (9.4mm) | .38 in. (9.6mm) | .308 in. (7.8mm) |
| 70137 71137 | 4.75 in. (120.6mm) | 1.24 in. (31.5mm) | .53 in. (13.5mm) | .53 in. (13.5mm) | .399 in. (10.1mm) |
| 70138 71138 | 5.16 in. (131.0mm) | 1.36 in. (34.5mm) | .56 in. (14.2mm) | .51 in. (12.9mm) | .498 in. (12.6mm) |
| 70139 | 5.96 in. (151.4mm) | 1.62 in. (41.1mm) | .69 in. (17.5mm) | .67 in. (17.0mm) | .617 in. (15.7mm) |
| 70140 | 9.88 in. (250.9mm) | 2.37 in. (60.2mm) | 1.04 in. (26.4mm) | 1.15 in. (29.2mm) | .874 in. (22.2mm) |
